Built for real work

Why teams choose MUNBYN

The capabilities that matter most, shown at a glance.

Scanning

Zebra SE4710

Battery

7000mAh

System

Android 13

Protection

IP67

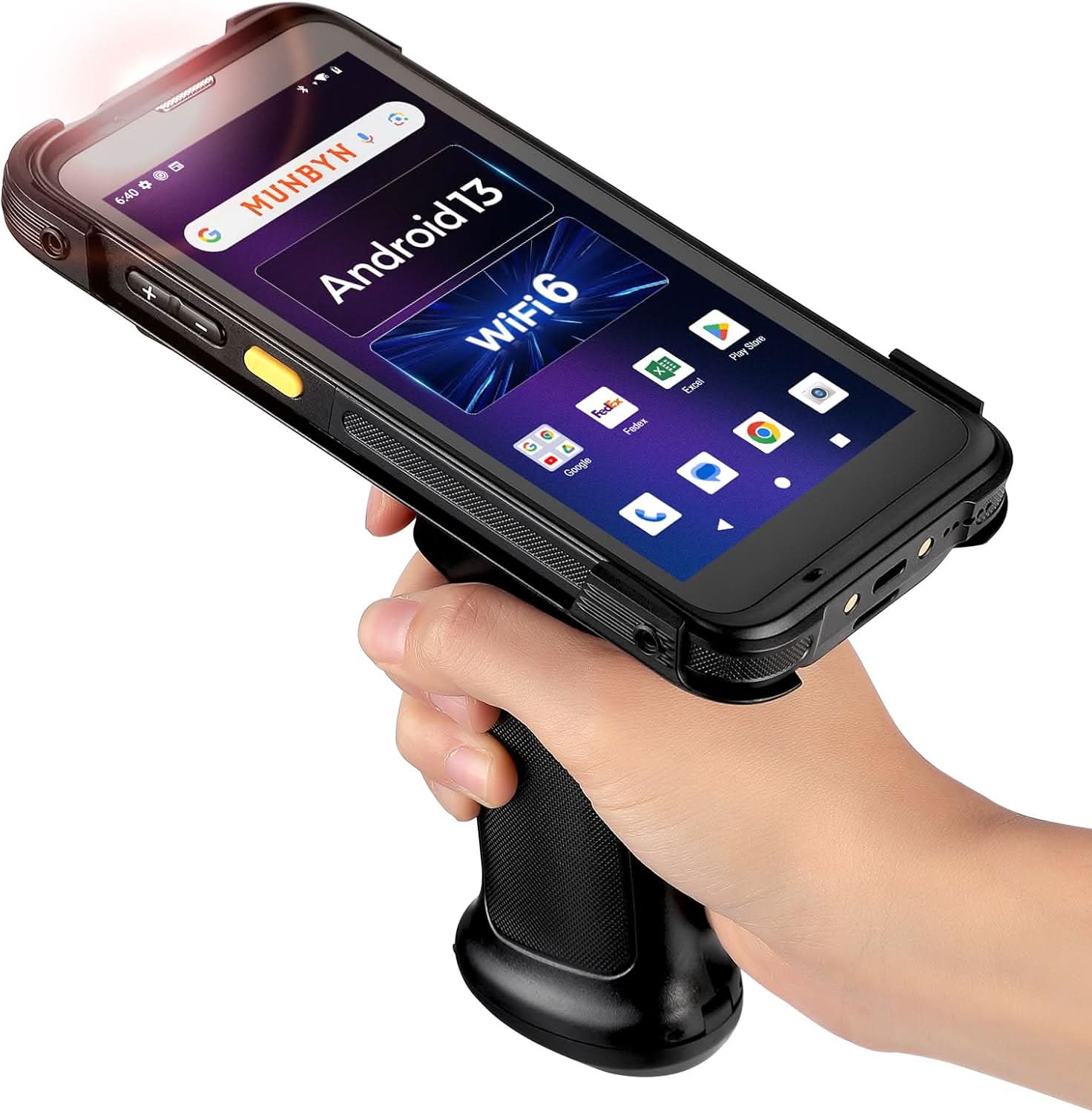

MUNBYN IPDA101P Android barcode scanner with 2D black design, capturing barcodes in a retail or warehouse setting.

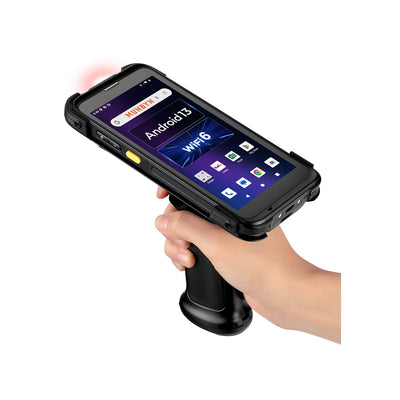

MUNBYN IPDA101P Android Mobile Computer with Zebra SE4710 Scanner
$580.90

Product details

Review the key specifications before choosing the right product.

Product overview
SKU
IPDA101P-2D-BK-US
Model
IPDA101
Product Dimensions
160.0 × 76.0 × 15.5 mm / 6.3 × 2.99 × 0.61 in
Weight
287 g / 10.12 oz (with battery)
Display Screen
5.5-inch HD display (18:9), IPS LTPS 1440 × 720; Screen brightness: 450-500nit
Operating System
Android 13
CPU
Qualcomm 2.0 GHz Octa-core
RAM + ROM
3 GB + 32 GB
Expand Memory
Supports up to 128 GB Micro SD card
Battery Capacity
  • 4300mAh(main) removable main battery, 5200 mAh optional pistol battery, supports QC 3.0 and RT(Android 11 with fingerprint / built-in UHF / volume measurement version: 5200mAh)
  • Standby: up to 490 hours (only main battery; WiFi: up to 470h; 4G: up to 440h)
  • Continuous use: over 12 hours (depending on user environment)
  • Charging time: 2.5 hours (charge device by standard adaptor and USB cable)
Camera
Rear 13 MP Autofocus with flash
Touch Panel
Corning Gorilla Glass, multi-touch, gloves & wet hands supported
Key
1 power key, 2 scan keys, 2 volume keys
Sensor
Gravity, proximity, light, accelerometer, vibration motor
More specifications
Expand Port
1 slot for SIM card, 1 slot for SIM or TF card
Interface
USB Type-C, USB 3.1, OTG, extended thimble
WLAN

5GHz (channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations;

WWAN (America)
  • 2G: 850/900/1800/1900 MHz
  • 3G: 850/900/1900/2100 MHz
  • 4G: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38
Bluetooth
Bluetooth 5.1
GNSS
GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna
NFC
  • Frequency: 13.56MHz; Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.; Chips: M1 card (S50, S70), CPU card, NFC tags, etc.; Range: 2-4 cm
2D Imager Scanner

Zebra: SE4710, Support UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.; PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR-code, Micro QR-code, Aztec, MaxiCode; Postal Codes: US PostNet, US Postal, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.

Vo-LTE
Support Vo-LTE HD video voice call
SDK Development
Android SDK Language: Java, Tool: Android Studio/Eclipse/Xamarin
Drop Specifications
Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range; Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber bumper
Operating Temperature
-20℃ ~ 50℃
Storage Temperature
-40℃~ 70℃
Environment Humidity
5% RH – 95% RH non condensing
Speaker
Support
Vibrator
Support
Microphone
2 Microphones, 1 for noise reduction
Indication
Power, charging, status indicator
Product Certification
CE-RED, FCC-ID, FCC-SDOC, ROHS, IC, IP65, MIL-STD-810H, 2m drop
Special Features
Zebra SE4710 Scanner Engine; IP65 Rated
Service Warranty
MUNBYN is dedicated to providing high-quality products and exceptional customer service. This product comes with a 2-year warranty against manufacturing defects for the original purchaser. For bundled product purchases, the warranty period for each individual item is governed by our Warranty Policy. To gain a complete understanding of all our warranty terms, we encourage you to visit our Warranty Policy page.
Box contents
  1. IPDA101P Scanner
  2. USB Cable
  3. Charger
  4. Protective Film
  5. Lanyard
  6. Silicone Case
  7. Hand Strap (Optional)
  8. Pistol (Optional)
  9. User Manual
Technician servicing a handheld scanner, alongside MUNBYN U.S. repair and app testing information.

PROOF 01 /SUPPORT FOR YOUR ROLLOUT

Plan Your Setup Before You Scale

Before equipping your team, ask MUNBYN to help test your app and scanning workflow on the IPDA101P. If a device needs attention later, contact support for troubleshooting and the applicable U.S. repair process, with service handled under the relevant warranty terms.

IPDA101P handheld scanner shown with Android 13 and system feature icons.

PROOF 02 /ANDROID FOR DAILY WORK

Keep Scanning and Apps on One Device

Run compatible inventory apps on Android 13 and review stock information directly on the handheld. Set up barcode input with MUNBYN Infowedge so scans reach the right app fields. Test your workflow before deployment; Zebra DataWedge is not supported on this device.

Wi-Fi 6 graphic over shipping containers, illustrating wireless connectivity for IPDA101P.

PROOF 03 /CONNECTED ACROSS YOUR WORKFLOW

Update Stock Where the Work Happens

Use Wi-Fi 6 to connect the IPDA101P to your facility network while receiving goods, checking shelves, or picking orders. With a compatible app and network connection, workers can update records from the floor. Coverage and performance depend on your access points and site layout.

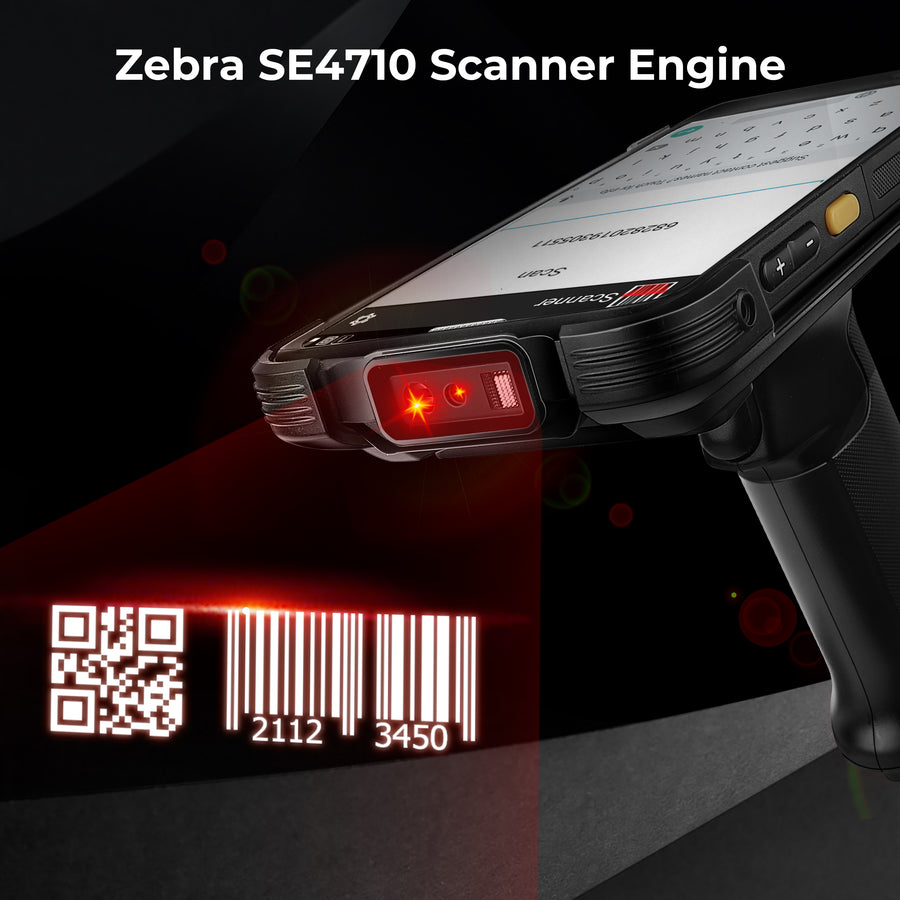

Close-up of the IPDA101P scan window and pistol grip beside illustrated 1D and QR barcodes.

PROOF 04 /CAPTURE LABELS AT THE SOURCE

Turn Barcodes Into Usable Records

The Zebra SE4710 engine reads common 1D and 2D barcodes for receiving, picking, and inventory checks. Scan an item, review the result, and continue in your configured app. The detachable pistol grip offers a trigger position suited to repeated scanning tasks.

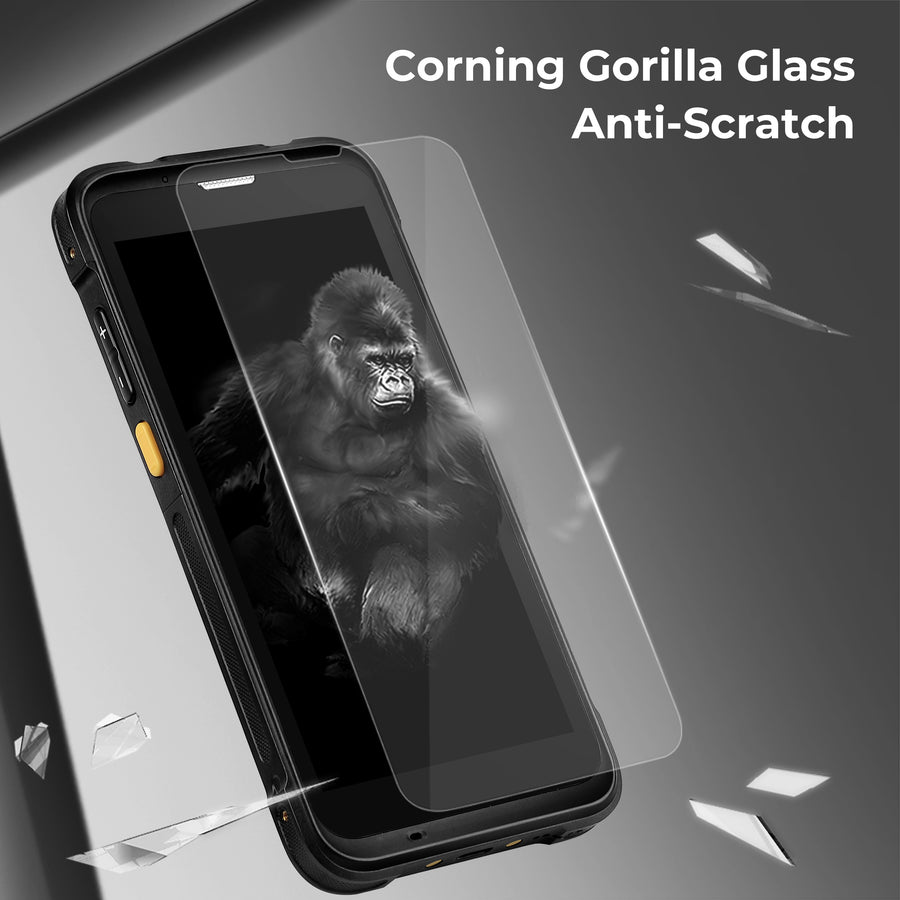

Front of the IPDA101P with a Gorilla Glass protection illustration and a gorilla on the display.

PROOF 05 /A DISPLAY FOR DAILY HANDLING

Keep Item Details Easy to Check

The 5.5-inch touchscreen gives workers space to review item details and confirm entries without switching devices. Corning Gorilla Glass and a replaceable screen protector add protection for everyday handling. Keep the screen clean and follow care guidance; protective glass can still scratch or break.

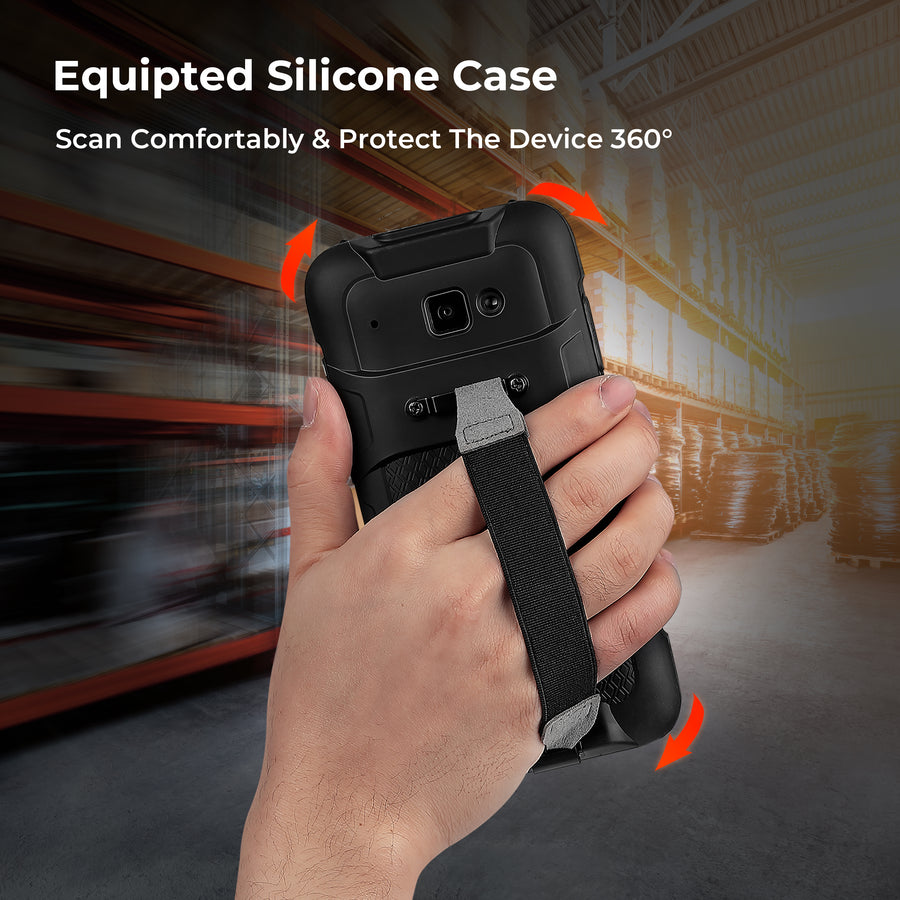

Hand holding an IPDA101P in a black silicone case with a rear hand strap in a warehouse.

PROOF 06 /A STEADIER HOLD ON THE FLOOR

Handle Everyday Scanning With Confidence

The silicone case adds grip and a protective layer as the IPDA101P moves between shelves and workstations. The pictured hand strap offers another way to hold it during checks. Confirm your selected package contents, since the hand strap and pistol grip are listed as optional accessories.

Download the Digital User Guide



User Manual

Download Now >>

Our Partners

Android mobile computer with Zebra SE4710 scanner praised for "fast and accurate" scanning, Android 13 OS, and ergonomic pistol grip design. Customers highlight "exceptional" support and long battery life for all-day warehouse use. Some noted setup complexity and higher price point, though most found it "great value."

  • 5 stars: 23 (88%)
  • 4 stars: 3 (12%)
  • 3 stars: 0 (0%)
  • 2 stars: 0 (0%)
  • 1 star: 0 (0%)
G
Gunthore

This Android scanner is basically a fully functioning Android phone with a built in barcode scanner that can be mounted to a scanner gun for easy use. You can use the internet and insert a SIM card if you wanted to. The device does weigh quite a bit more than a normal phone so it is not the best option for that purpose.The scanner eye is very quick and it takes a fraction of a second to register and accurately display the barcode. There are a lot of settings to adjust to have it work the best way for your business needs.The setting up and does take a lot of time and the instructions to get it scanning are not the best and it does need a lot of work. Once it is all set up and working well, the scanner feature is very good.There is a scanner gun attachment with a built in battery and it works really well. The other case with a hand strap is comfortable.

E
Eizaria
Up to date software and fast scanner

The reason I got this bar code scanner is having a small shop to track my inventory. The scanner which is 2D is very fast and scans immediately. Remember, you can use this scanner as a cellphone because it's compatible with sim cards or you can use it with Wi-Fi. Screen on this device is very bright and high quality picture. Furthermore, I like the battery life which has a fantastic capacity. Highly recommended.

A
ATG E.

Great purchase!

N
Ningzhi
Excellent use, good buy

I initially thought they were products from the same company due to their similar appearance. However, after purchasing a non-MUNBYN product, I realized there are significant differences. MUNBYN��s scanning setup software, infoWedge, is very similar to ZebraDesign and offers comprehensive features, whereas other brands use keyboardemulators. This is just one of the many important distinctions. Additionally, the customer service from the other brand did not meet their claims; I received almost no response when I needed help. However, MUNBYN's support was exceptional��they helped us resolve issues quickly, even with non-MUNBYN scanners. Will hold on MUNBYN always.

S
Share

This was a bit tricky to setup. This is essentially an android smartphone attached to a handle. It actually works great without the handle since i can just fit it in my pocket and scan things as needed.

D
DTM

Very good scanner - have been using them for over a year and no operational issues. we use them and leave them in a cooler (4'C) and no issues

A
Amazon C.

The tech support is terrific which I don't expect.Love the scanner. Thank you

J
JH
Great Scanner

compact and works great. setup was easy and unit responsive.we purchased to try, now will be purchasing more due to its functionality and versatility.

A
AM
Impressive Performance and Ease of Use!

We recently purchased the MUNBYN 2024 Barcode Scanners with Pistol Grip, and we are thoroughly impressed by their performance. The smooth and responsive user experience, combined with Wi-Fi 6, makes connectivity fast and reliable even in busy environments.The ergonomic pistol grip design is comfortable, allowing for easy use over longer periods without causing fatigue. The barcode scanning is impressively fast and accurate, which has significantly boosted our efficiency in daily operations.Setup was straightforward, and the device was ready to go after just a bit of configuration. Additionally, they are fully compatible with our MDM solution, which made the integration process seamless.Overall, these are powerful, reliable, and user-friendly barcode scanners that have become an essential tool in our business.

C
Cuz W.R.
Vendor worthy

This handheld scanner is a great tool to have for vendor events. It��s easy to set up and you can add an air time if you want to make it more efficient.

E
Euro
A lot of money for a scanner, but it is a huge amount of scanner for the cost

The best scanner I have used, period. I work in IT and need to inventory things all the time. Usually, this involves manually noting inventory numbers in a database or spreadsheet. Those days are over now, I technically don't even need my laptop as this holds a SIM card and connects up to my data directly - I moved my files to a cloud-based storage and can now just scan and the data is posted instantly. Even correcting issues is a breeze given the large size of the display and good touchscreen. Basically, it is a full Android cellphone and a very high-end scanner in one perfect package, but with the double battery, you will never run out.

C
Calbee Q.
Great little device����

This Android barcode scanner features a large 5.5-inch touchscreen that provides users with clear visibility even outdoors due to its excellent sunlight readability, and the device uses a Zebra SE4710 scanner to ensure fast barcode scanning, even for damaged or unclear barcodes. The Barcode Scanner have a great battery life and the scanner is fast and can be customized to your needs��It solves my problem of finding inventory and counting goods!

J
Jesse
ADVANCED mobile SCANNER

This hand scanner comes fully equipped with an advanced system. The mobile device doubles as a phone with 2 SIM card slots. It��s easy to use and the touchscreen is responsive. The Android 13 system seems to be the newest version available. You��re able to use this without the handle attachment to scan items. The system allows for a full inventory of items and is well organized. It helps you track when items come in and scan out to help keep stock well organized. It��s well made and relatively durable. You can download all your favorite apps as well as, remove the phone-mobile and use as a scanner and phone which helps you swallow the tag on this device. Overall, a great option for inventory keeping.

h
human X.
easy to use

This scanner is equipped with the latest Android 13 system, with a smooth interface and easy operation. The 5.5-inch full-screen design provides a wide field of view, sensitive touch, and a very good user experience. The screen display is also very clear, and information can be easily read in both indoor and outdoor lighting. The pistol grip design is a highlight of this scanner. It is comfortable to hold, effortless and convenient to operate, and is especially suitable for long-term use. In addition, the overall weight of the device is light, and it is also very convenient to carry without placing too much burden on the wrist. This device is equipped with a SE4710 Zebra scanner, which can read 1D, 2D and QR codes efficiently and quickly. Whether it is a paper label or a barcode on an electronic screen, it can be accurately identified, greatly improving work efficiency. For work environments that require frequent barcode scanning, this device is undoubtedly an ideal choice, but its price is a bit high. I hope it can be more value for money.

S
Scott J.
A great solution

The Munbyn pistol scanner functionality has totally answered our needs, allowing us to run our warehouse inventory application on the device and scan warehouse supply to keep us accurate and on track. It will also allow us the user the flexibility of tracking their time through our time tracking application. We have had no complaints from the users on ease of use. The batteries have also allowed for enough run-time to get through each shift. Munbyn has also offered quick quality support for any questions that have come up.

J
JC
Great product !

Great product. Technical support is fabulous. We bought 10 of them for our warehouse.

A
Alexander H.
Great Product

This scanner is great, works perfectly and the customer service is excellent. They very professional and helpfull. I recommend this product.

L
LISA D.
Excellent product!

Great product and great customer service�� We purchased 2 in March 2025 then purchased 2 more this month because we really like these scanners�� Very happy with the products��and highly recommend��

T
TDWhiteKnight
Great Service

We have had a number of Munbyn scanners over the years and anytime we have the slightest issue, Mynbyn support was right on it!

S
Steve F.
Customer Service after the sale is EXCELLENT

I have purchased 5 of these for barcode scanners for our receiving department and they have proven to be excellent and very good quality for the price.The customer service that they provide is excellent.I would highly recommend the Munbyn.

G
Gerda K.
MUNBYN Scanner

MUNBYN's new android inventory scanner is perfect for our company! The scanner is easy to use and works perfectly with our inventory program. The device's battery is durable enough to work in our freezer/cooler storage facility for the whole shift. The device has a large screen that makes reading a breeze but also still small enough to comfortably work with for a whole shift.On a bonus note, MUNBYN"s customer service team is phenomenal! They were able to respond to all of my questions and concerns in a timely manner. They were able to guide me through setting up the device to adjust settings to make our program and the device programming compatible.I would highly recommend this device after my experience with both the device and the support team!

A
Action S.
Good and Reliable Product

We used the Zebra MC9200 before we switched to this scanner while the functionality is the same but just a fraction of the cost. They also provide a good after sales service to their customers.

J
Jesus F.
Win-Win for your business

We have purchased 25 of these over the last 4 years. We have a warehouse team of 30 shipping millions of units per year.We run our web-based WMS on these scanners and have had great experience. Straight out of the box they do great. When you need help they have a great support team as well.

H
Happy M.C.
High quality android Pistol grip scanner

These pistol grip android scanners are great for warehousing, manufacturing, inventory, etc. Android operating system is fast and smooth and capable. The scanner fidelity is fantastic and reads everything we throw at it. The Dual batteries have a long life and allow for hours of use. The form factor and size of the pistol grip is very ergonomic and efficient. Very happy with these scanners.

C
Chuangzhou
Strongly recommend!!!

Strongly recommend!!! This products is so good that scan our products label correctly and efficiently. We bought two for our warehouse, and it is amazing! The battery also last long time enough to use the whole day without charging again. Good products!!!

A
Andrew
Good devices and quick customer service.

We ordered 12 of these for use in a warehouse. They have been solid devices and the customer service has been solid as well.

FAQs

Please read our FAQs page to find out more.

Who should choose the MUNBYN IPDA101P barcode scanner with pistol grip?

The IPDA101P barcode scanner gun is well suited to repetitive warehouse picking, receiving, shipping, retail inventory, and logistics work. Its detachable pistol grip provides a natural trigger position for teams that scan hundreds or thousands of labels per shift.

What types of barcodes can the IPDA101P scan?

Its Zebra SE4710 engine reads widely used 1D and 2D barcodes, including UPC/EAN, Code 128, PDF417, Data Matrix, and QR codes. It is also designed to capture many damaged or poorly printed labels.

Can the IPDA101P barcode scanner gun run warehouse and inventory apps?

Yes. The IPDA101P mobile handheld scanner runs Android 13 and supports apps such as Odoo and Zoho Inventory. Barcode data is configured through MUNBYN Infowedge; Zebra DataWedge is not compatible with this device.

What wireless connections are available on the IPDA101P scanner?

The IPDA101P barcode scanner gun supports Wi-Fi 6, 4G cellular service, Bluetooth 5.1, and GPS. This lets workers update inventory over a facility network or continue transmitting data in mobile field workflows.

How long does the IPDA101P battery last?

The IPDA101P scanner configuration includes a 9500mAh battery capacity and is designed for up to 12 hours of use, depending on scanning frequency, display brightness, apps, and network activity. Use the original charger to maintain reliable charging.

Is the IPDA101P display suitable for warehouse work?

Yes. Its 5.5-inch touch display is readable outdoors and uses Corning Gorilla Glass for impact resistance. The panel also supports glove and wet-hand operation.

How durable is the MUNBYN IPDA101P handheld scanner?

It carries an IP65 rating for dust and water resistance and is tested for repeated drops up to 1.8 m (5.91 ft) onto concrete. The silicone case improves grip and adds protection during daily handling.

What should I check during IPDA101P setup if scans do not enter my app?

Open Infowedge and associate the correct scan profile with the target app, then confirm the required barcode types are enabled. Also close the camera before scanning, because the camera and scan engine cannot operate simultaneously.
