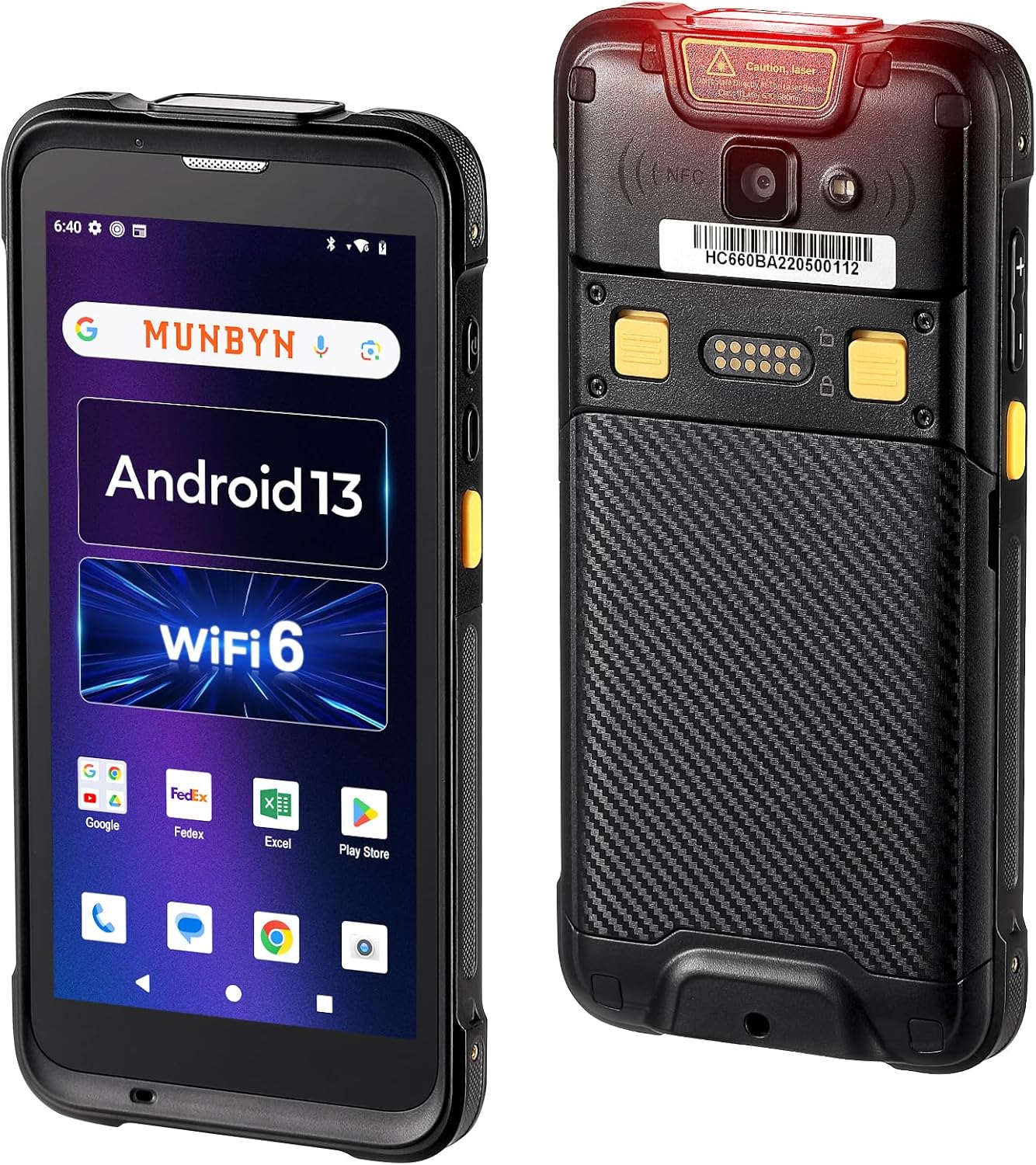

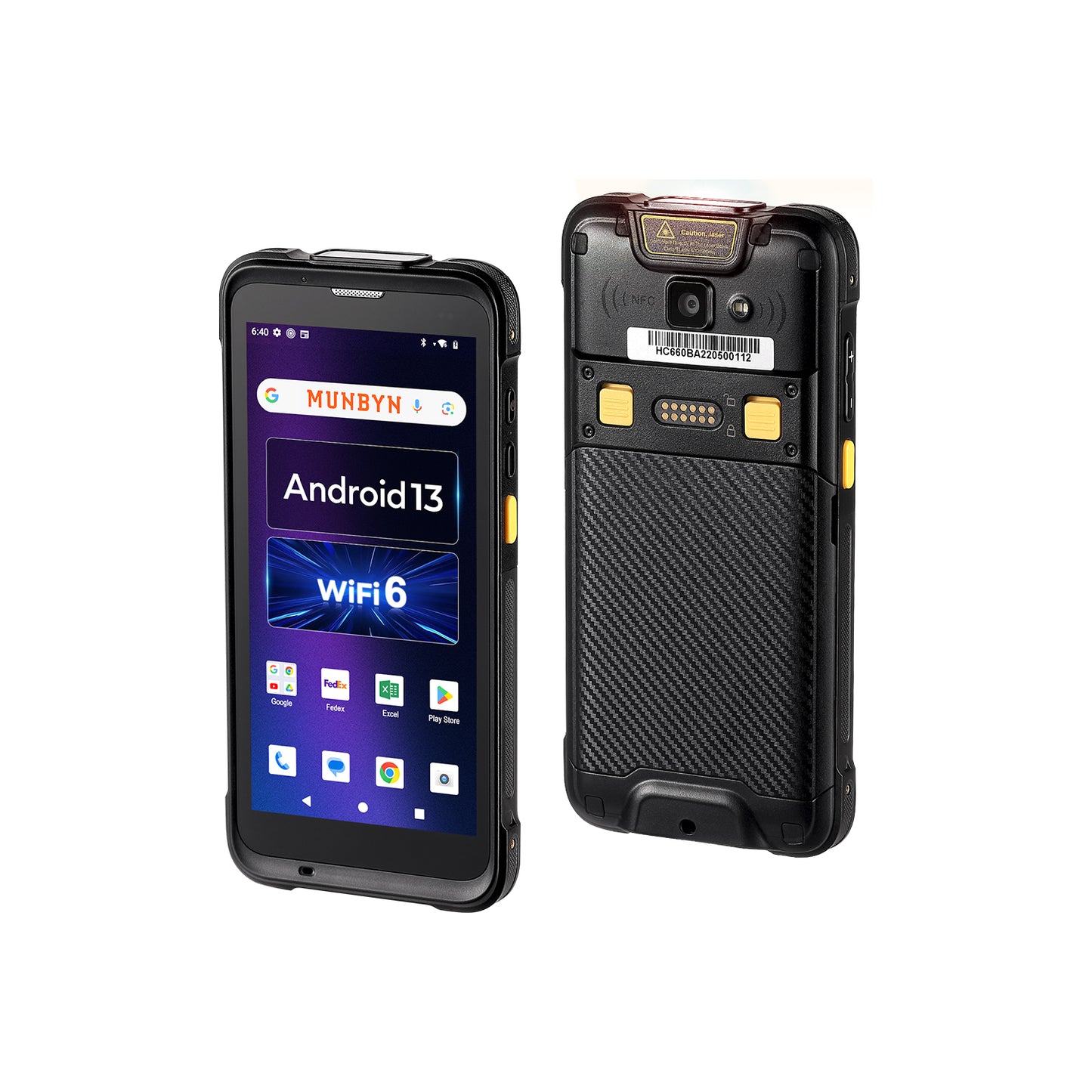

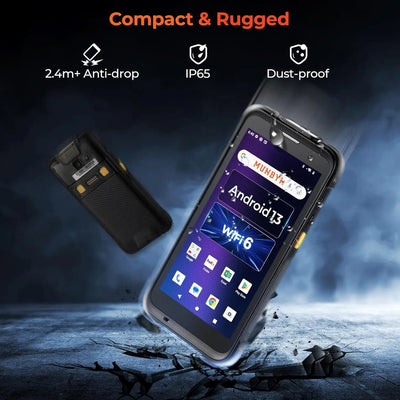

MUNBYN IPDA101 Android 13 with Zebra SE4710 Barcode Scanner
IPDA101 Barcode Scanner
$549.99

Product details

Product Specifications
FeatureDetails

Model

IPDA101

Product Dimensions

160.0 × 76.0 × 15.5 mm / 6.3 × 2.99 × 0.61 in

Item Weight (g)

287 g / 10.12 oz (with battery)

Operating System

Android 13

CPU

Qualcomm 2.0 GHz Octa-core

Display Screen

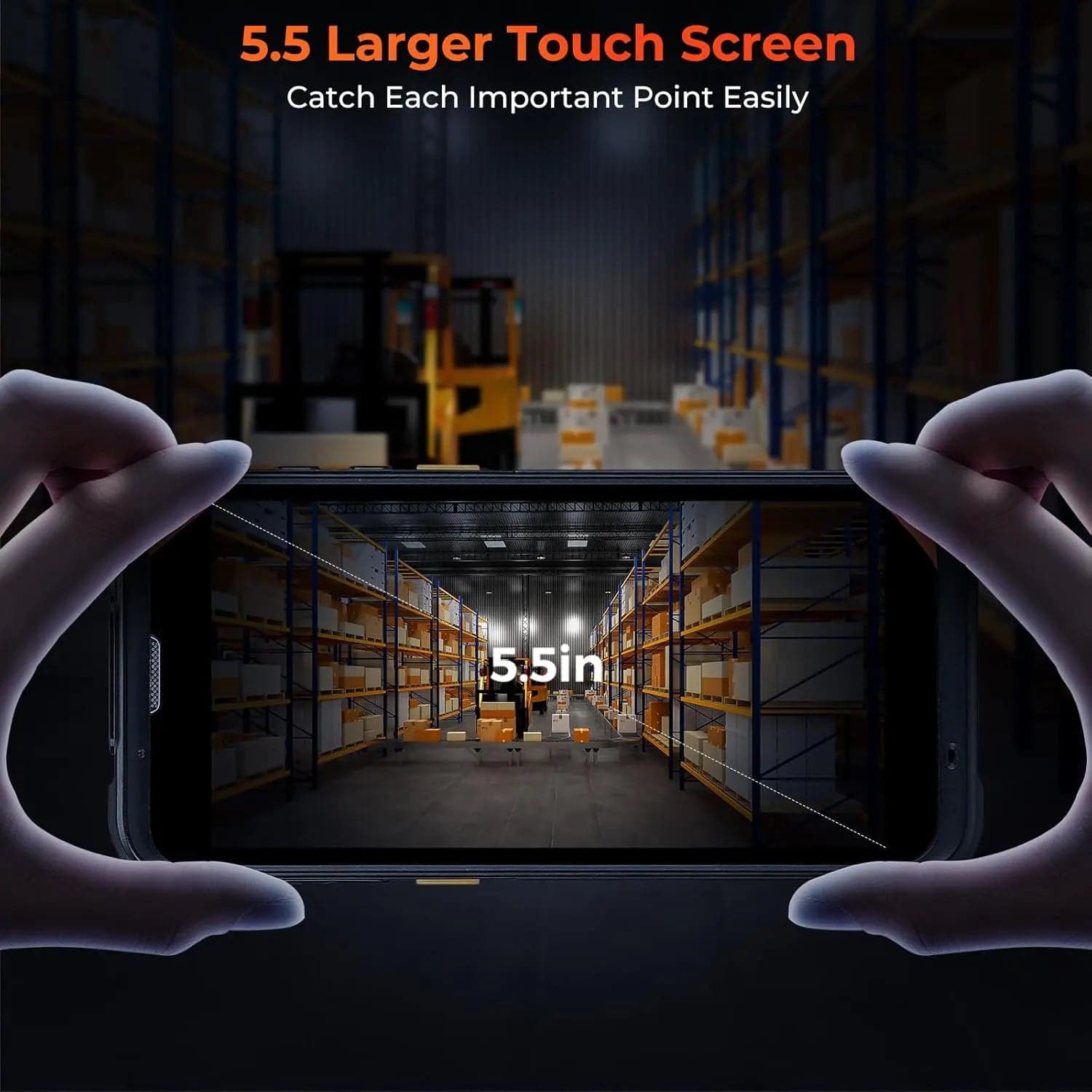

5.5-inch HD display (18:9), IPS LTPS 1440 × 720; Screen brightness: 450-500nit

Touch Panel

Corning Gorilla Glass, multi-touch, gloves & wet hands supported

RAM + ROM

3 GB + 32 GB

Expand Memory

Supports up to 128 GB Micro SD card

2D Imager Scanner

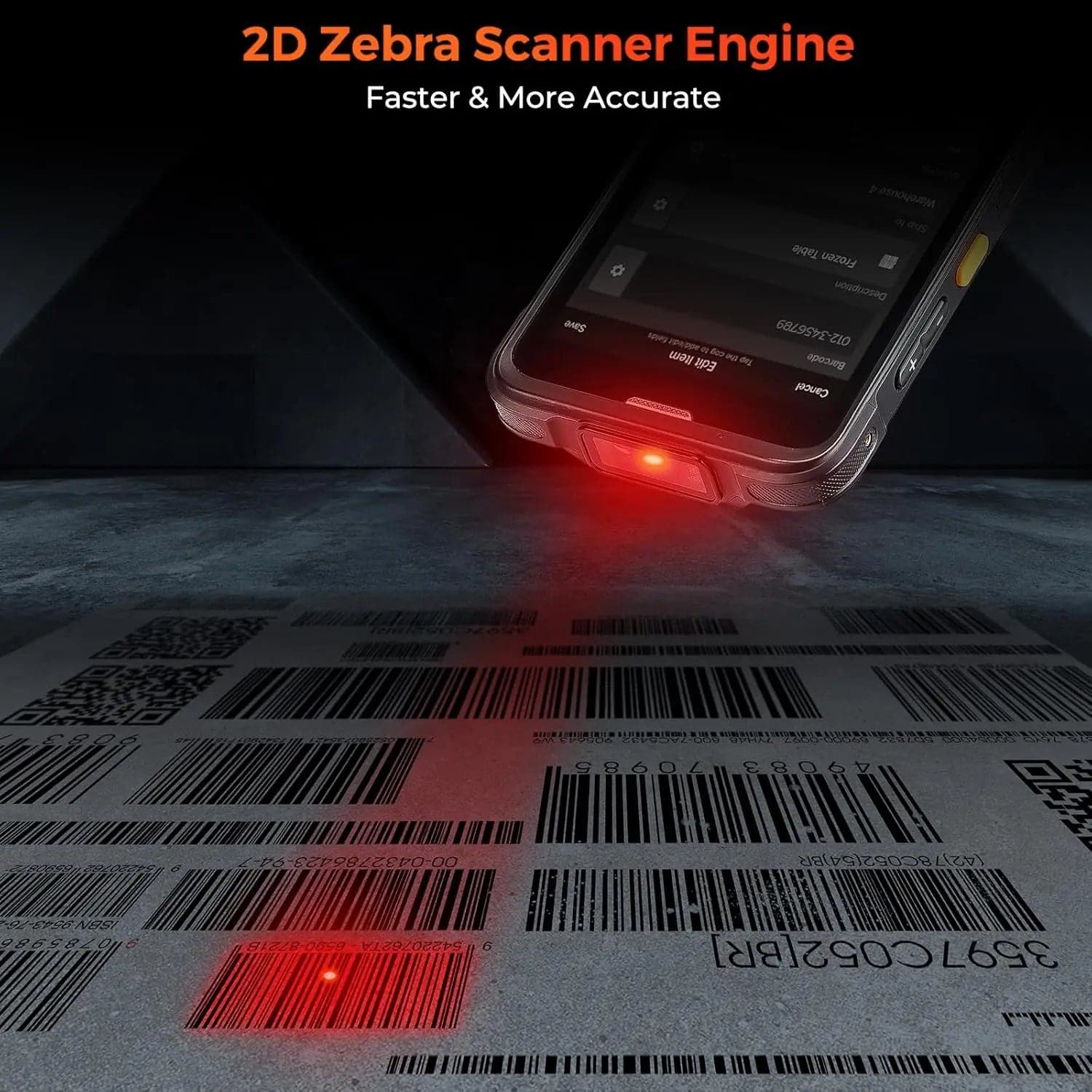

Zebra: SE4710, Support UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.; PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR-code, Micro QR-code, Aztec, MaxiCode; Postal Codes: US PostNet, US Postal, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.

2D Symbologies



WLAN

5GHz (channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations;

WWAN (America)

  • 2G: 850/900/1800/1900 MHz
  • 3G: 850/900/1900/2100 MHz
  • 4G: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38


Vo-LTE

Support Vo-LTE HD video voice call

Vo-LTE

Bluetooth 5.1

GNSS

GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

NFC

  • Frequency: 13.56MHz; Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.; Chips: M1 card (S50, S70), CPU card, NFC tags, etc.; Range: 2-4 cm

Camera

Rear 13 MP Autofocus with flash

Battery Capacity

4300mAh(main) removable main battery, 5200 mAh optional pistol battery, supports QC 3.0 and RT(Android 11 with fingerprint / built-in UHF / volume measurement version: 5200mAh)

Operating Temperature

-20℃ ~ 50℃

Sensor

Gravity, proximity, light, accelerometer, vibration motor

Key

Gravity, proximity, light, accelerometer, vibration motor

Expand Port

1 slot for SIM card, 1 slot for SIM or TF card

SDK Development

Android SDK Language: Java, Tool: Android Studio/Eclipse/Xamarin

Product Certification

CE-RED, FCC-ID, FCC-SDOC, ROHS, IC, IP65, MIL-STD-810H, 2m drop

Storage Temperature

-40℃~ 70℃

Environment Humidity

5% RH – 95% RH non condensing

Drop Specifications

Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range; Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber bumper

Special Features

Zebra SE4710 Scanner Engine; IP65 Rated
