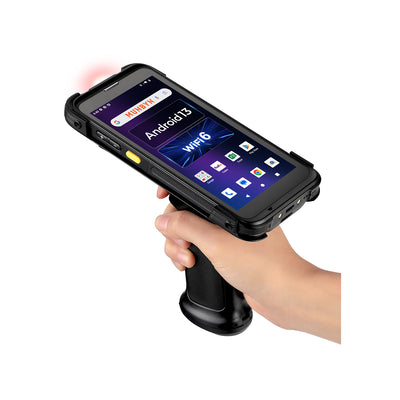

MUNBYN IPDA101P Android barcode scanner with 2D black design, capturing barcodes in a retail or warehouse setting.
IPDA101P Barcode Scanner
$580.99

Product details

Product Specifications
FeatureDetails

Model

IPDA101

Product Dimensions

160.0 × 76.0 × 15.5 mm / 6.3 × 2.99 × 0.61 in

Item Weight (g)

287 g / 10.12 oz (with battery)

Operating System

Android 13

CPU

Qualcomm 2.0 GHz Octa-core

Display Screen

5.5-inch HD display (18:9), IPS LTPS 1440 × 720; Screen brightness: 450-500nit

Touch Panel

Corning Gorilla Glass, multi-touch, gloves & wet hands supported

RAM + ROM

3 GB + 32 GB

Expand Memory

Supports up to 128 GB Micro SD card

2D Imager Scanner

Zebra: SE4710, Support UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.; PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR-code, Micro QR-code, Aztec, MaxiCode; Postal Codes: US PostNet, US Postal, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX),etc.

WLAN

5GHz (channel36,40,44,48,52,56,60,64,100,104,108,112,116,120,124,128,132, 136,140,144,149,153,157,161,165),Depends on local regulations;

WWAN (America)

  • 2G: 850/900/1800/1900 MHz
  • 3G: 850/900/1900/2100 MHz
  • 4G: B2/B4/B5/B7/B12/B13/B17/B28A/B28B/B38

Vo-LTE

Support Vo-LTE HD video voice call

Bluetooth

Bluetooth 5.1

GNSS

GPS/AGPS, GLONASS, BeiDou, Galileo, internal antenna

NFC

  • Frequency: 13.56MHz; Protocol: ISO14443A/B, ISO15693, NFC-IP1, NFC-IP2, etc.; Chips: M1 card (S50, S70), CPU card, NFC tags, etc.; Range: 2-4 cm

Camera

Rear 13 MP Autofocus with flash

Battery Capacity

4300mAh(main) removable main battery, 5200 mAh optional pistol battery, supports QC 3.0 and RT(Android 11 with fingerprint / built-in UHF / volume measurement version: 5200mAh)

Operating Temperature

-20℃ ~ 50℃

Sensor

Gravity, proximity, light, accelerometer, vibration motor

Key

1 power key, 2 scan keys, 2 volume keys

Expand Port

1 slot for SIM card, 1 slot for SIM or TF card

SDK Development

Android SDK Language: Java, Tool: Android Studio/Eclipse/Xamarin

Product Certification

CE-RED, FCC-ID, FCC-SDOC, ROHS, IC, IP65, MIL-STD-810H, 2m drop

Storage Temperature

-40℃~ 70℃

Environment Humidity

5% RH – 95% RH non condensing

Drop Specifications

Multiple 1.8 m / 5.91 ft. drops (at least 20 times) to the concrete across the operating temperature range; Multiple 2.4 m / 7.87 ft. drops (at least 20 times) to the concrete after installed rubber bumper

Special Features

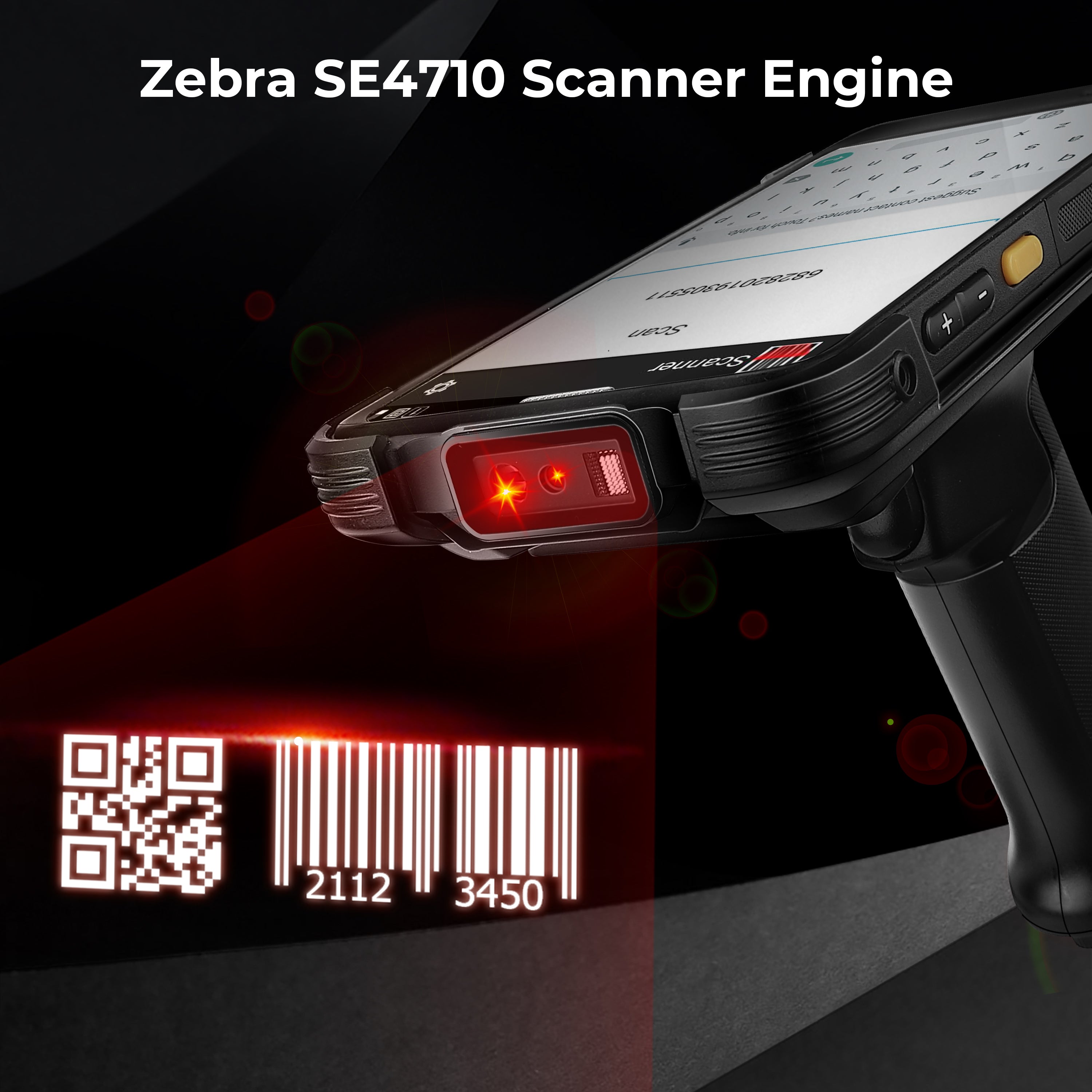

Zebra SE4710 Scanner Engine; IP65 Rated

MUNBYN Android 13 & Wi-Fi 6 Bar code Scanner, Raise Your Working Efficiency!

Maximize Device Uptime — Value Beyond The Hardware

  • If you need repair, our local centers(within the United States)are waiting for you. Once you select the MUNBYN device, you get comprehensive coverage — if it’s broken, we fix it. With a live 24/7 technical agent, help is available when you need it. There’s no waiting for scanners to be returned — a ‘like new’ ready-to-use replacement scanner arrives the next day, complete with your apps, OS version, network configuration, and more.

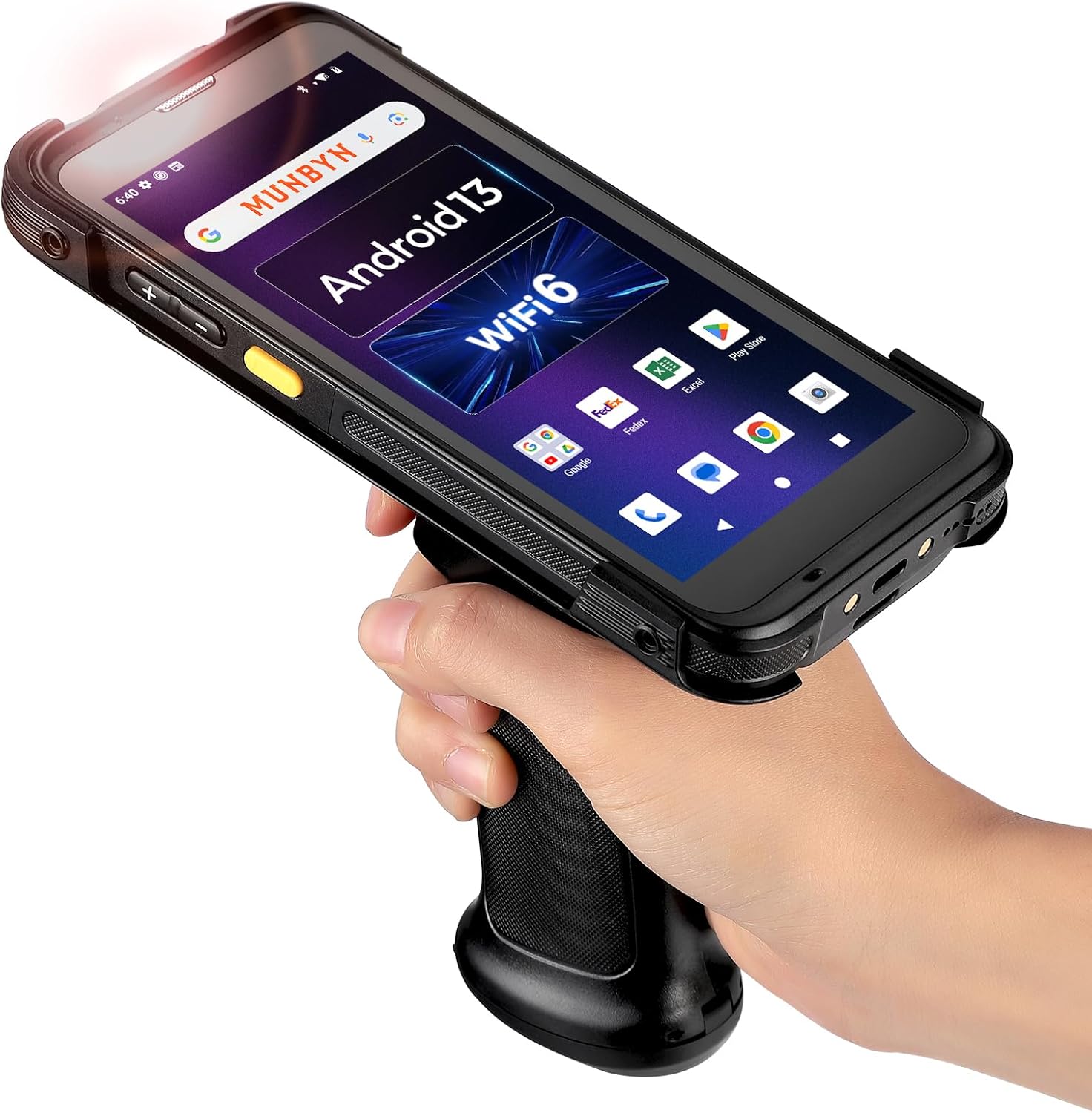

  • Scan it faster, scan it more comfortably! The Android scanner is equipped with an ergonomic pistol grip. You can get the barcode by pressing the button, which meets your daily needs.
  • The Android data terminal offers a converged solution to cater to the demand of cycle counting, on-demand delivery, asset management, etc.

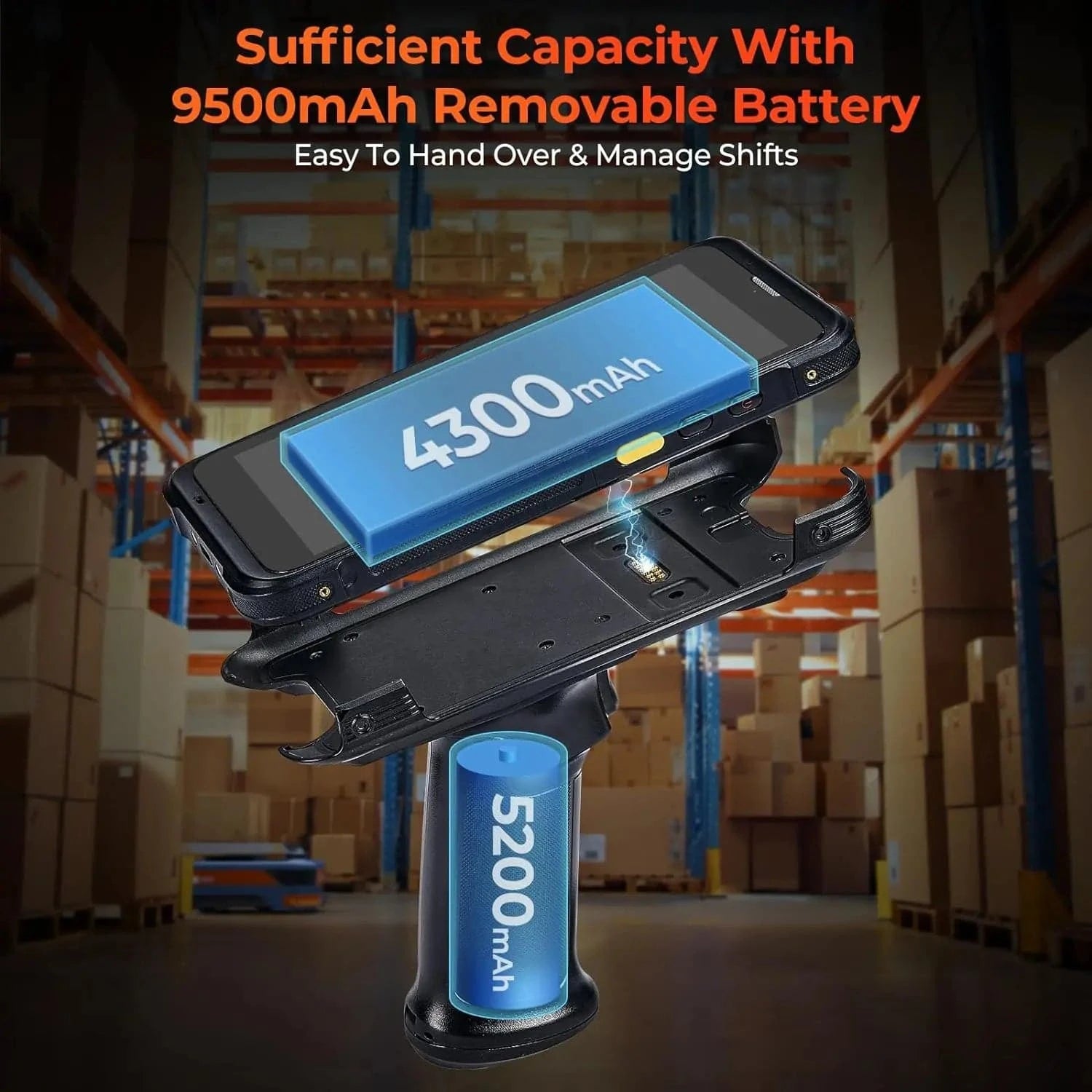

  • With a sufficient 9500mAh capacity, the Android bar code scanner is widely used for warehouse management, logistics, retail, manufacturing, agriculture, and e-commerce.
  • Specific applications of the intelligent Android mobile computer are as follows: commodity/ quantity/ inventory checks, item locator, assisted selling, items tracking, inventory/ asset management, payment, etc.
  • Ideal for managing your business, support this MDM software: Ivanti, SOTI, Scalefusion, and WizyEMM. This handheld scanner has obtained Android Enterprise Recommended(AER), which means it finely protects the security of enterprise and personal data.

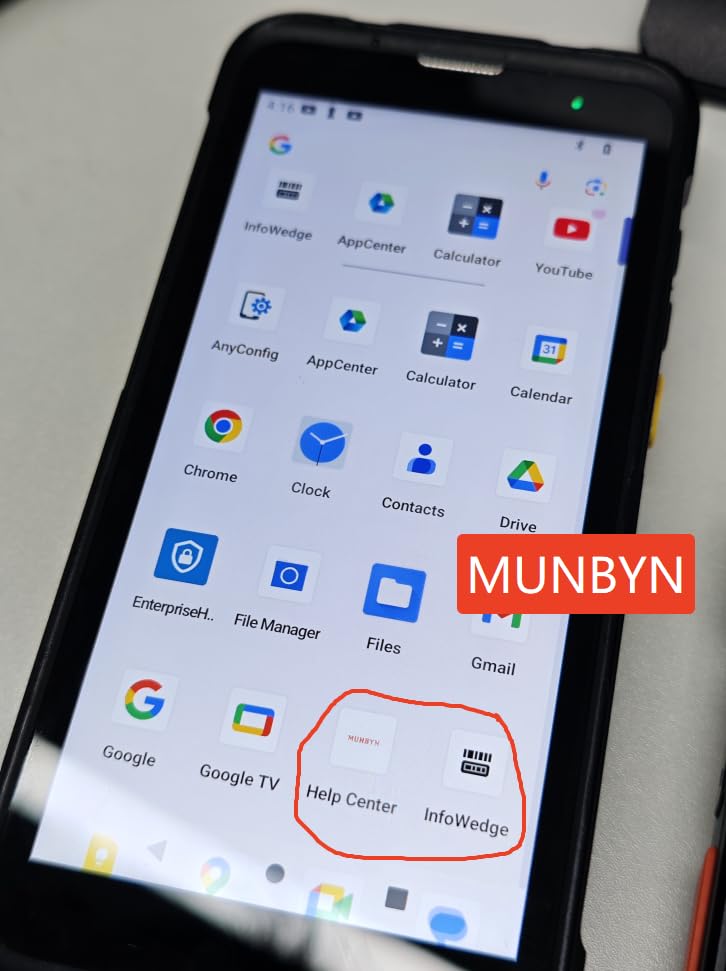

  • With a preinstalled professional scanning app (Infowedge) for fast and reliable scans. If the trigger is unresponsive, it could be a setting issue. Please reach out to our seller support for instructions.

**Some Unique Designs in Its Class:

  1. Scan button wakes up the screen: Click on Settings > Click on Display > Find Wake on Scan and enable it
  2. Different apps can offer different scanning settings: Select the created profile > On the Configuration page, click Associated Applications to start associating applications > Tap the menu in the upper right corner and select > New Application/Activity, a list will be displayed containing all the applications installed on the device
  3. Different bar codes can offer different settings: Clicking on Test ProFile, you can see the Advanced Data Formatting > Select your target bar code for differential settings

And so on(check the user manual)

**!**Note:

  • MUNBYN is committed to your satisfaction. If your device encounters any issues, we'll make sure it's back in perfect working order within 3 business days, whether that means repairing it or replacing it with a new one. With a wide-reaching presence across the globe—including the United States, Canada, Mexico, Australia, Europe, and the Middle East—wherever you are, you can count on MUNBYN to resolve any device problems promptly within 3 business days.
  • Scanning Range: Show code 39 as an example-scanning range between 1.97 inch/5 cm to 29.92 inch/76 cm.

The Upgraded Android Version from IPDA086P to IPDA101P

  • The Android bar code scanner IPDA101P adopts the highest PDA Android system in the Enterprise market, thereby maximizing the application user experience.
  • Using Android 13 OS ensures the data and processing are safe and protects your privacy.

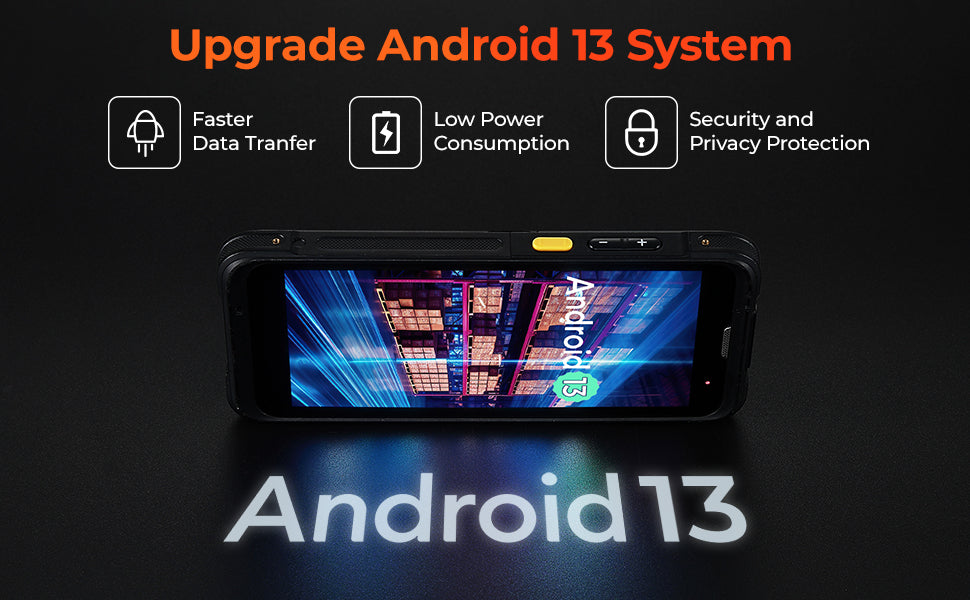

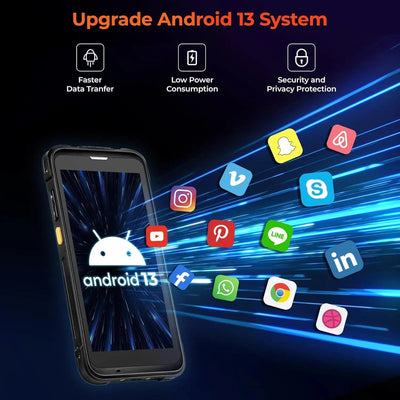

Three Main Advantages:

  1. Faster Data Tranfer: The latest version of Android system allows device hardware to better integrate with the latest operating system and improves the smoothness of device operation.
  2. Low Power Consumption: Android 13 includes several features designed to reduce power consumption and extend device battery life. The updated version of Android 13 system greatly improves energy efficiency compared to the previous old system version.
  3. Security and Privacy Protection: In Android 13, the capability to integrate barcode scanning features doesn't inherently come with specific security and privacy protections tied directly to the action of scanning bar codes. However, the overall security and privacy framework provided by Android 13 can indirectly benefit applications used in warehousing and logistics, including those that utilize barcode scanning functionality.

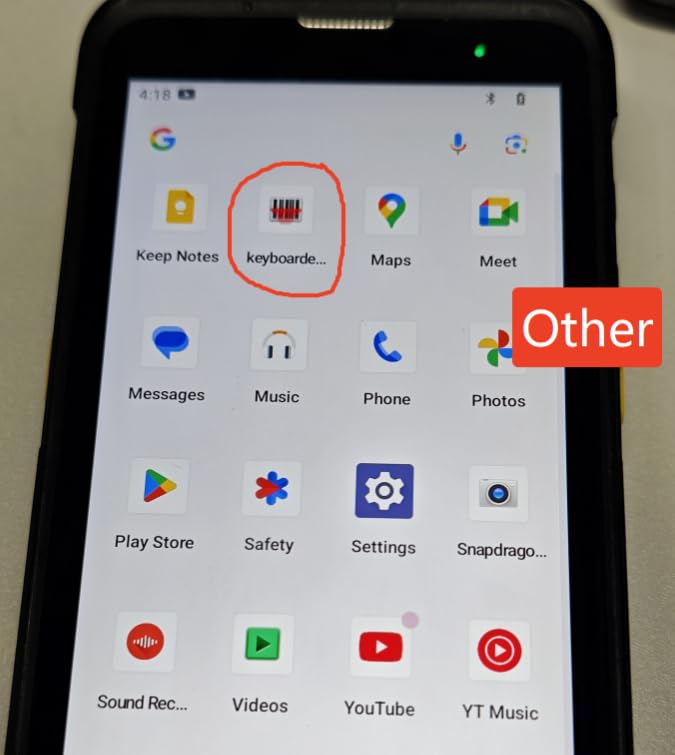

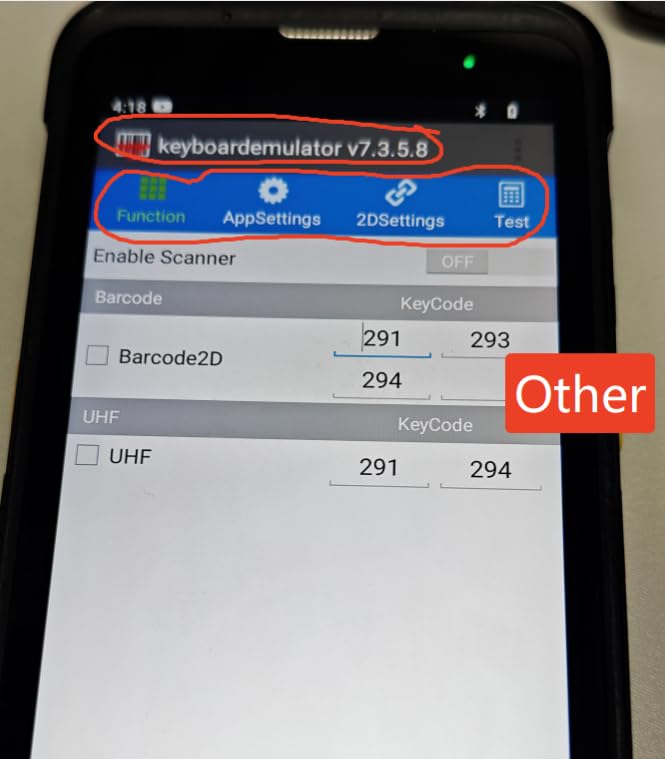

** Please make sure to get MUNBYN Scanner. The products get from other brands may look similar, but there are many differences, such as the scanning setting software. Ours is infowedge (like zebra design), and other brands are keyboardemulator.

In addition, only scanners got from MUNBYN can get MUNBYN's high-quality lifetime assistance.

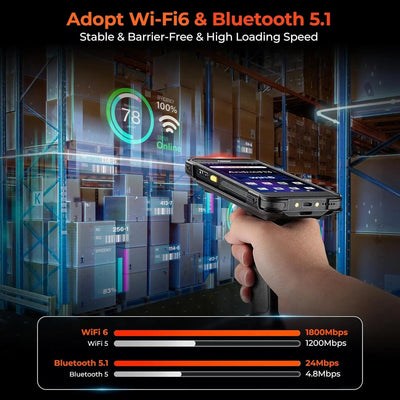

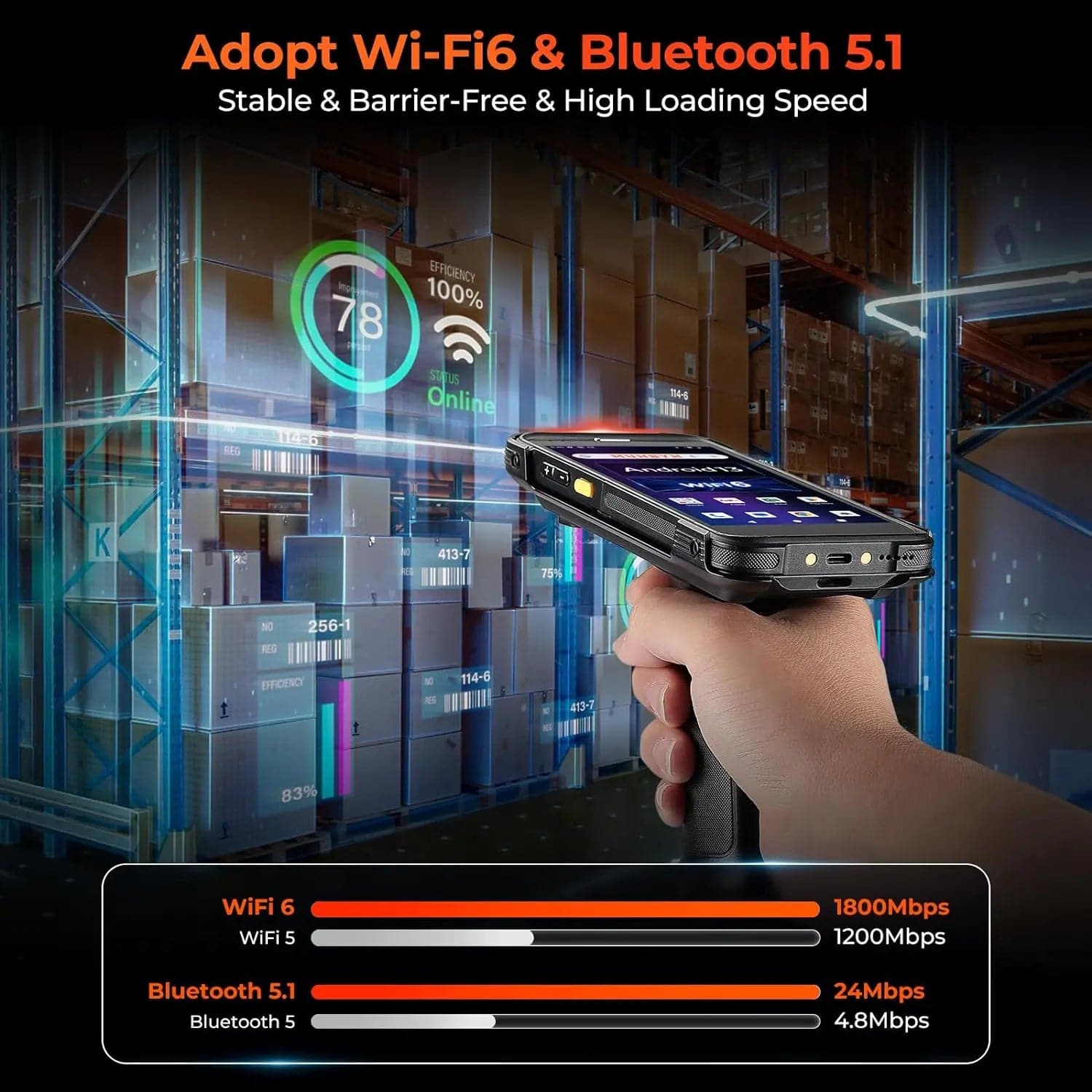

High Performance Wi-Fi 6, Key Features & Benefits

  • It’s triple the speed, and Wi-Fi 6 offers much faster data rates. It can raise 300% efficiency when downloading or transferring files.
  • Where Wi-Fi 5 (802.11ac) maxes out at 1200 Mbps, Wi-Fi 6 offers a maximum possible data rate of 1800 Mbps, potentially tripling the speed of its predecessor, Wi-Fi 5, and providing support for more bandwidth-intensive applications.

Compared to WiFi 5:

  1. More Capacity Up to 4 times;
  2. Data Throughput Increase Up to 40%;
  3. Backwards Compatibility Up to 100%.

High-end Cnfiguration, Designed to Solve Problems

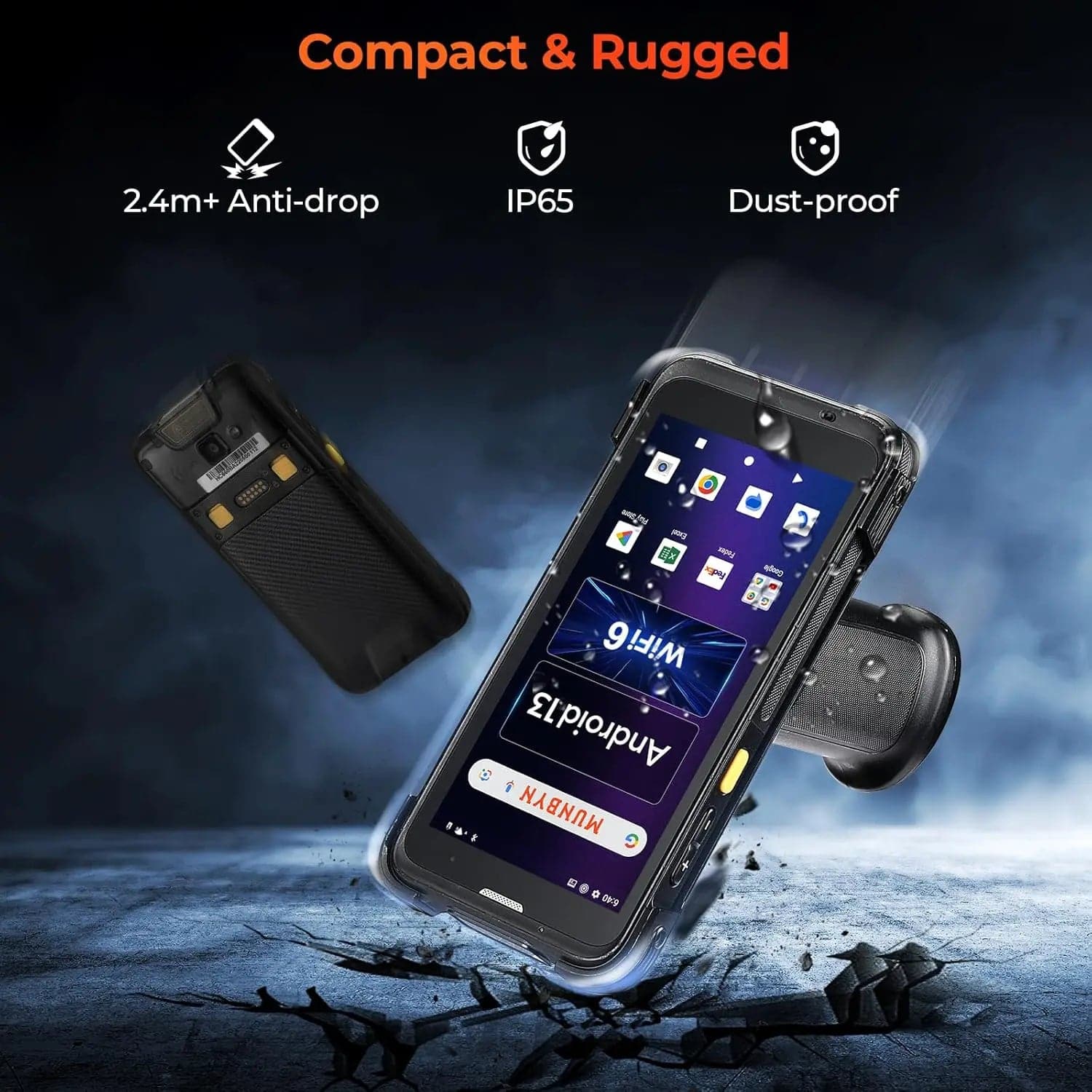

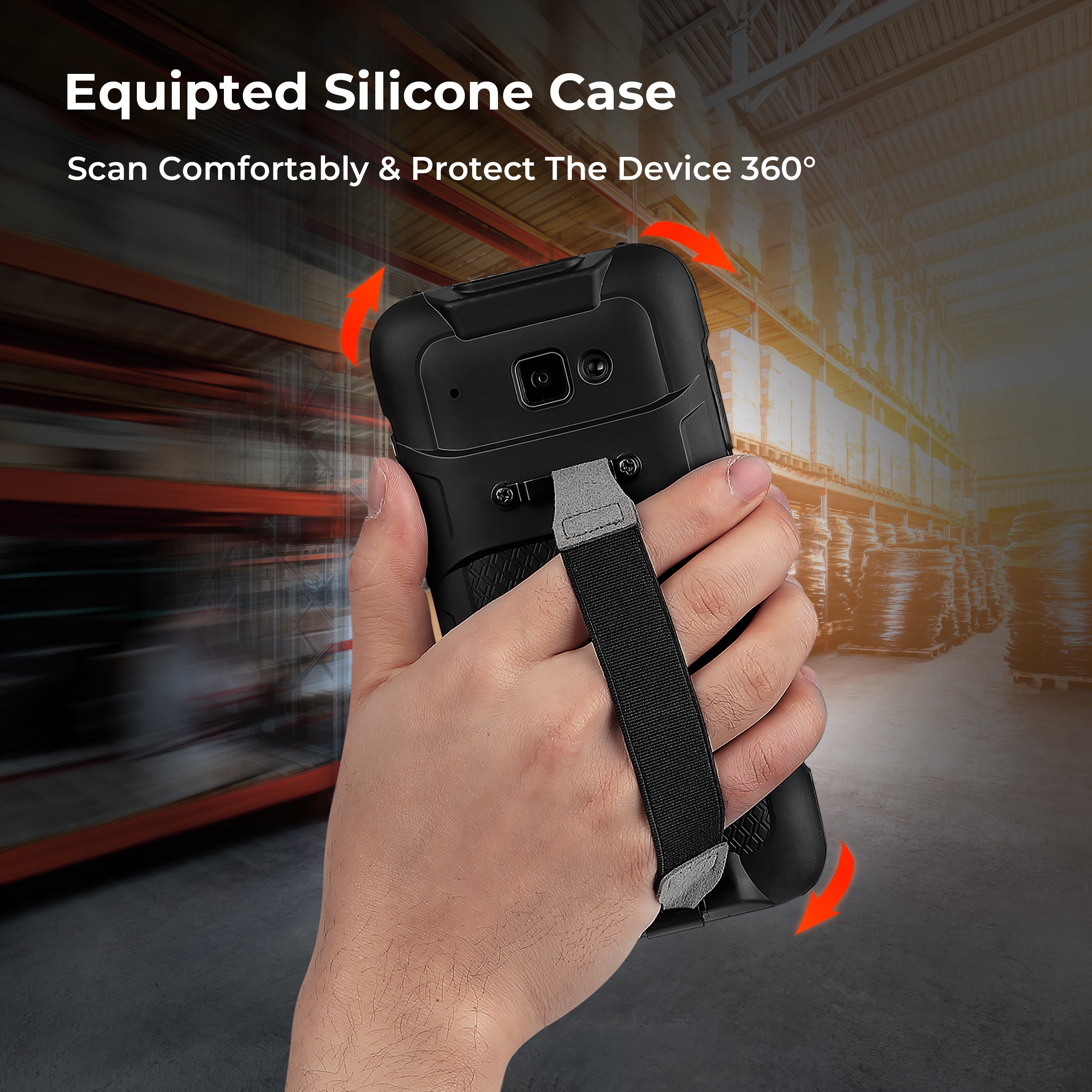

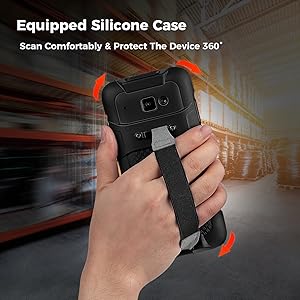

360° Protection Surround The device

Besides the pistol grip, the package comes with an extra case that can protect the device from dropping.

A belt strap gives users a better experience, easy to hold in retail, logistics, and so on.

Compact Yet Modern Form-factor

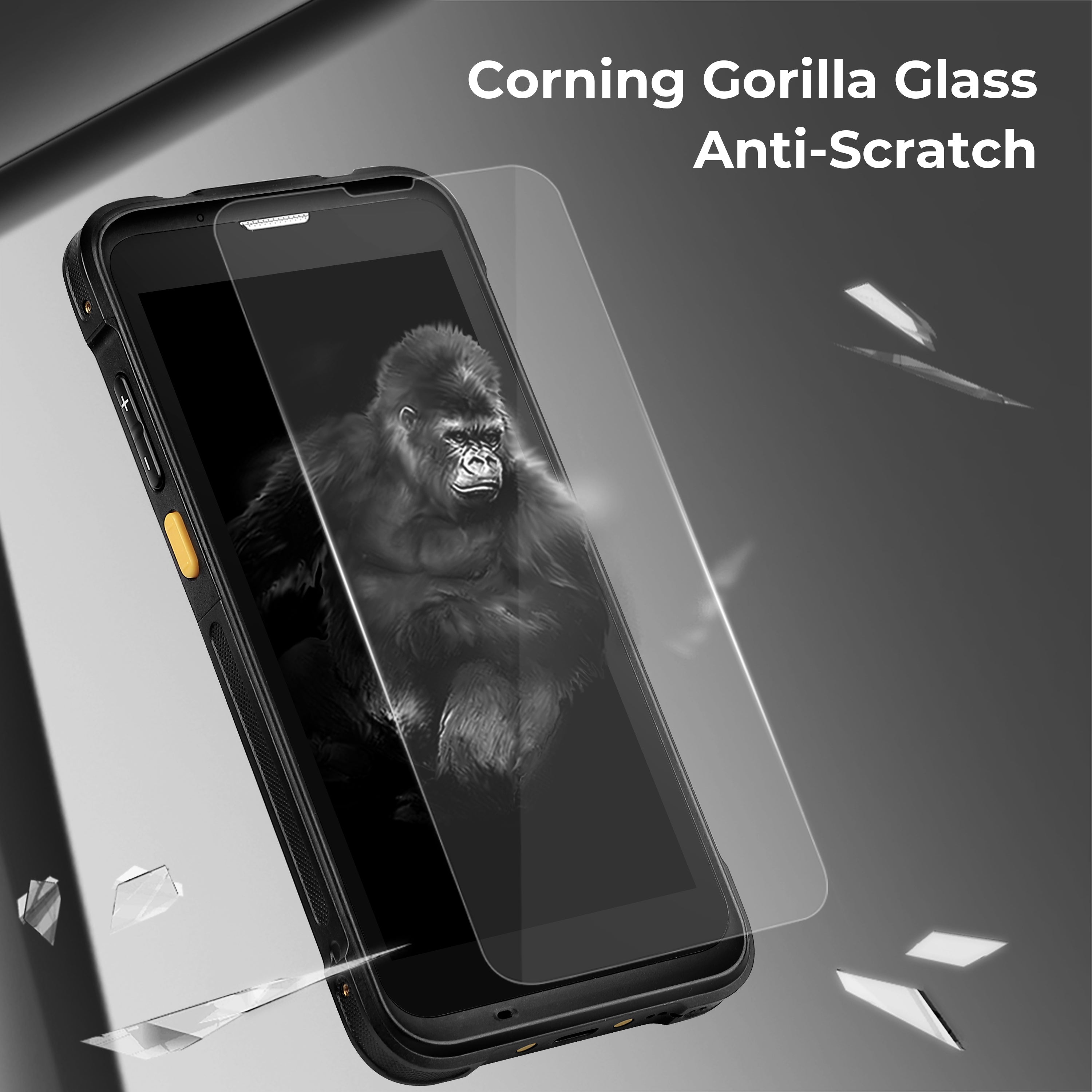

  • This Android scanner adopts Corning Gorilla glass, crash-durable, enhancing the use life of the screen.
  • Meanwhile with a 5.5-inch full-touch display, easier to catch each piece of information easily.
  • What's more, it comes with a screen film for replacement.

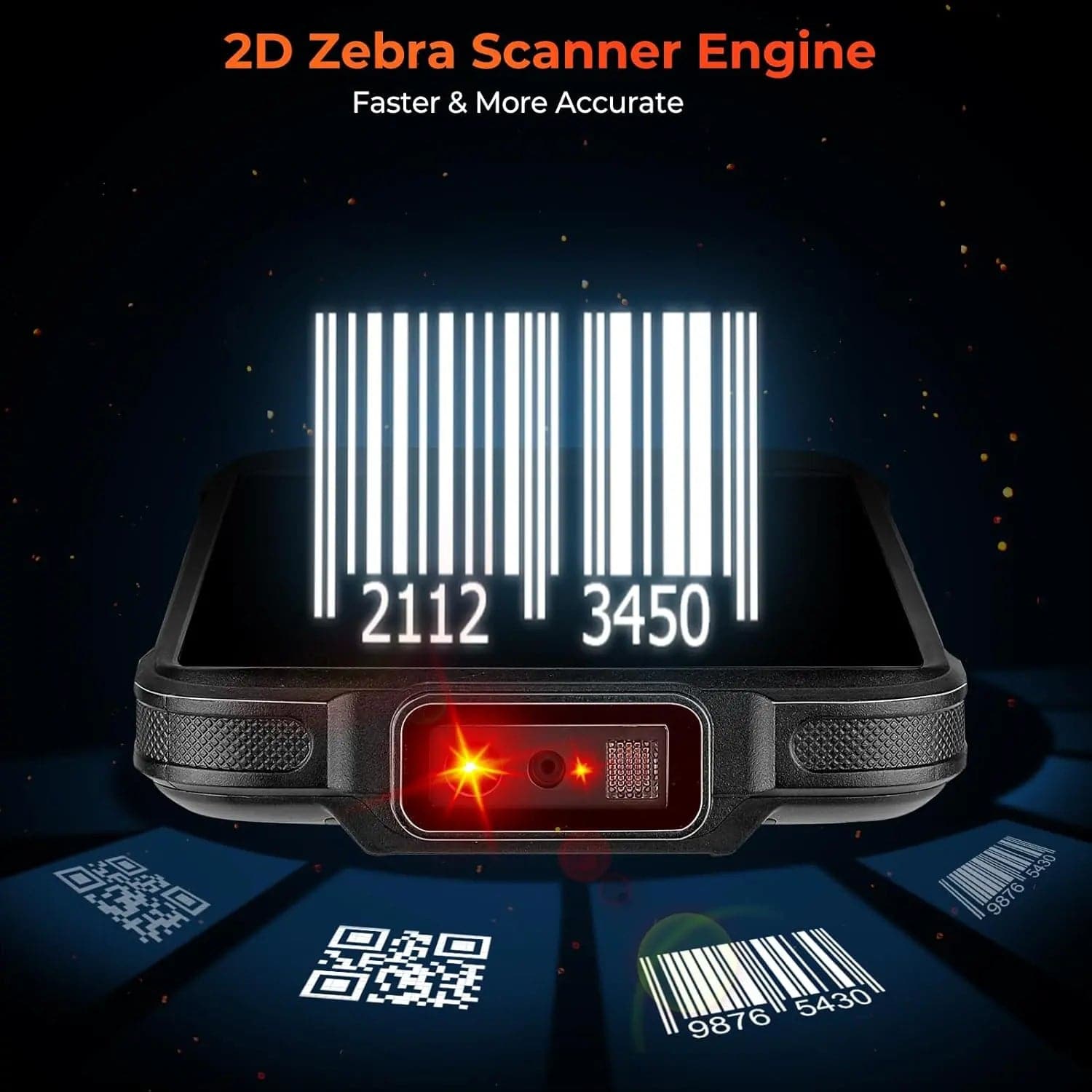

Advanced Scanner Engine

Support these kinds of barcodes:

2D: PDF417, MicroPDF417, Composite, RSS, TLC-39, Datamatrix, QR-code, Micro QR-code, Aztec, MaxiCode; Postal Codes: US PostNet, US Postal, UK Postal, Australian Postal, Japan Postal, Dutch Postal (KIX), etc.

1D: UPC/EAN, Code128, Code39, Code93, Code11, Interleaved 2 of 5, Discrete 2 of 5, Chinese 2 of 5, Codabar, MSI, RSS, etc.

Download the Digital User Guide



User Manual

Download Now >>

Why Customers Choose MUNBYN

Discover the difference of choosing MUNBYN.

Over

100K+

Satisfied Customers

Over

400K+

Products Sold

Over

150+

Patents

Selling in

120+

Countries

Over

6000m³+

Factory

Over

500+

Employees

Over

50+

Technicians

Always

24/7

Service & Tech Support

Our Partners

FAQs

Please read our FAQs page to find out more.

What operating system do the scanners use?

MUNBYN scanners run on Android 12, 13, or 14, depending on the model (AS01P, MC005P, IPDA088, IPDA087P, IPDA101, etc.). All systems support Google services and enterprise apps.

What barcode engines are available?

Use this text to answer questionOur PDA scanners use high-performance engines such as:
Zebra SE4710 / SE4750 / SE4750MR / SE4850

Honeywell HS7
These engines support fast and accurate scanning in retail, warehouse, logistics, and manufacturing environments.s in as much detail as possible for your customers.

What types of barcodes can they scan?

MUNBYN PDAs support:
1D:UPC, EAN, Code128, Code39, ITF, etc.
2D:QR Code, DataMatrix, PDF417, Aztec, etc.

Long-range (MR/ER) scanning available on Zebra SE4750MR & SE4850 models.

Do the scanners support long-range or far-distance scanning?

Yes. Models with Zebra SE4750MR or SE4850 can scan barcodes from near contact range up to several meters, ideal for warehouse shelves and industrial use.

Are these devices rugged and drop-proof?

Yes. Most MUNBYN PDAs feature:
IP65 / IP67 waterproof & dustproof rating
1.5–1.8m drop resistance
Suitable for warehouse, manufacturing, and outdoor environments.

Do they support 4G, dual-band Wi-Fi, or Wi-Fi 6?

Yes. Many models support:

  • 4G LTE
  • Dual-band 2.4G/5G Wi-Fi
  • Wi-Fi 6 (selected models)
  • Ideal for warehouses and retail stores
  • with high device density.
Can I use the PDA as a mobile computer?

Yes. It functions as a full Android device with app downloads, touch display, camera, GPS, and Bluetooth.

How long is the battery life?

Most PDAs include 5000mAh–8000mAh batteries, offering 8–12 hours of continuous operation. Some models support hot-swappable batteries.

Are MUNBYN PDAs compatible with warehouse or POS software?

Yes. They support most Android-based software, including:
WMS, ERP, POS, inventory apps, Shopify POS, Square, and custom enterprise systems.

Do they support NFC or RFID?

Selected models include NFC for access control, tagging, or quick pairing.
RFID versions are available—contact support for model confirmation.

Is Google Play Store included?

Yes. All standard models include GMS certification and access to Google Play.

Can I integrate the PDA with my existing system?

Yes. MUNBYN PDAs support SDK/API integration for custom apps, compatible with Android development tools.
