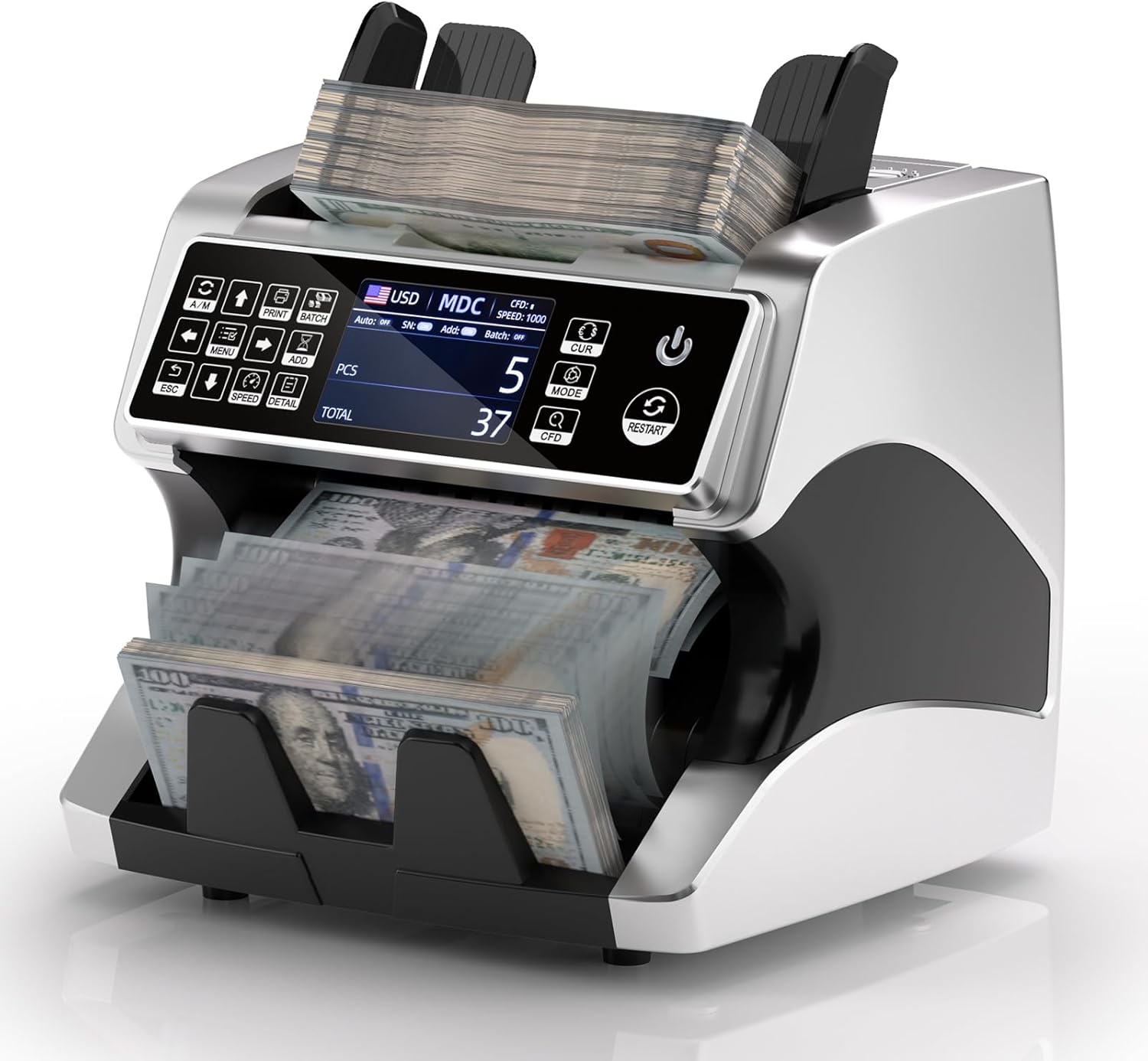

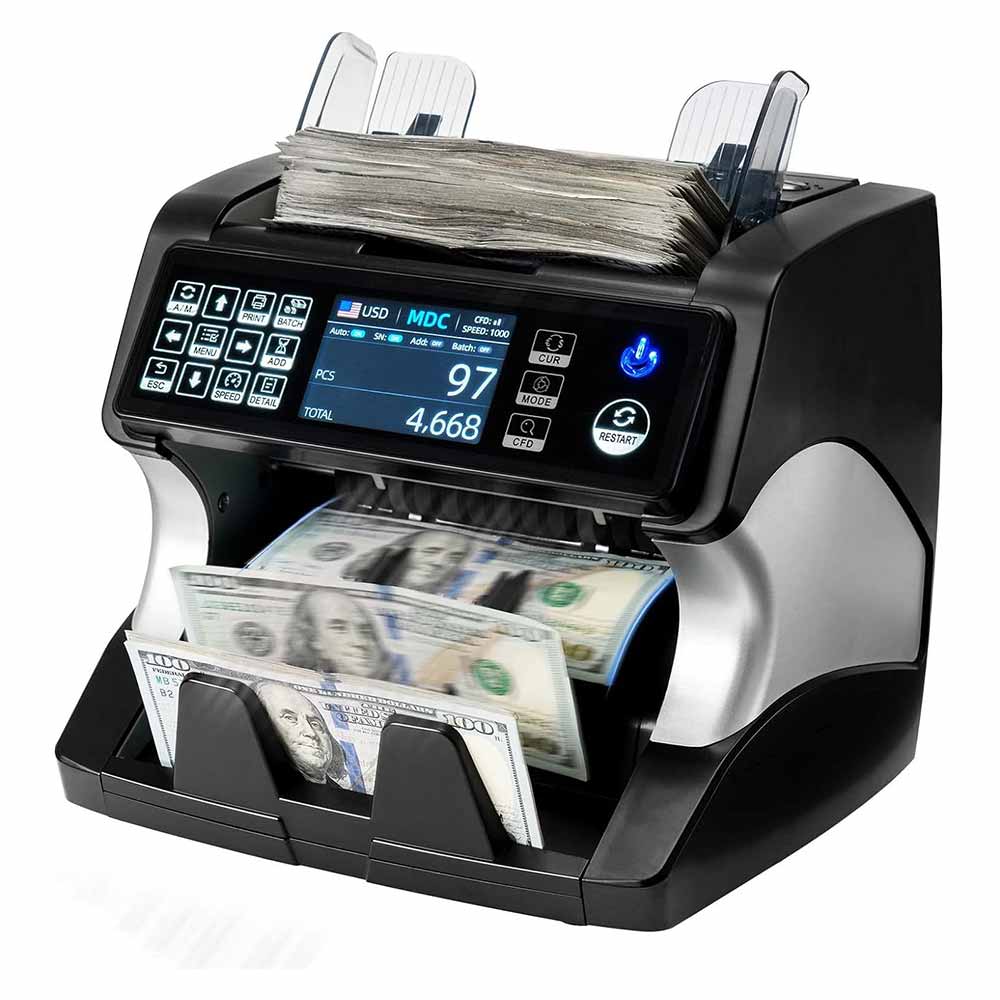

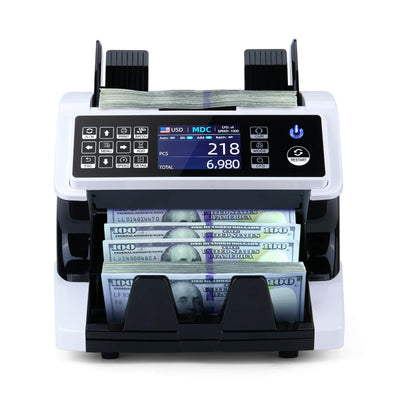

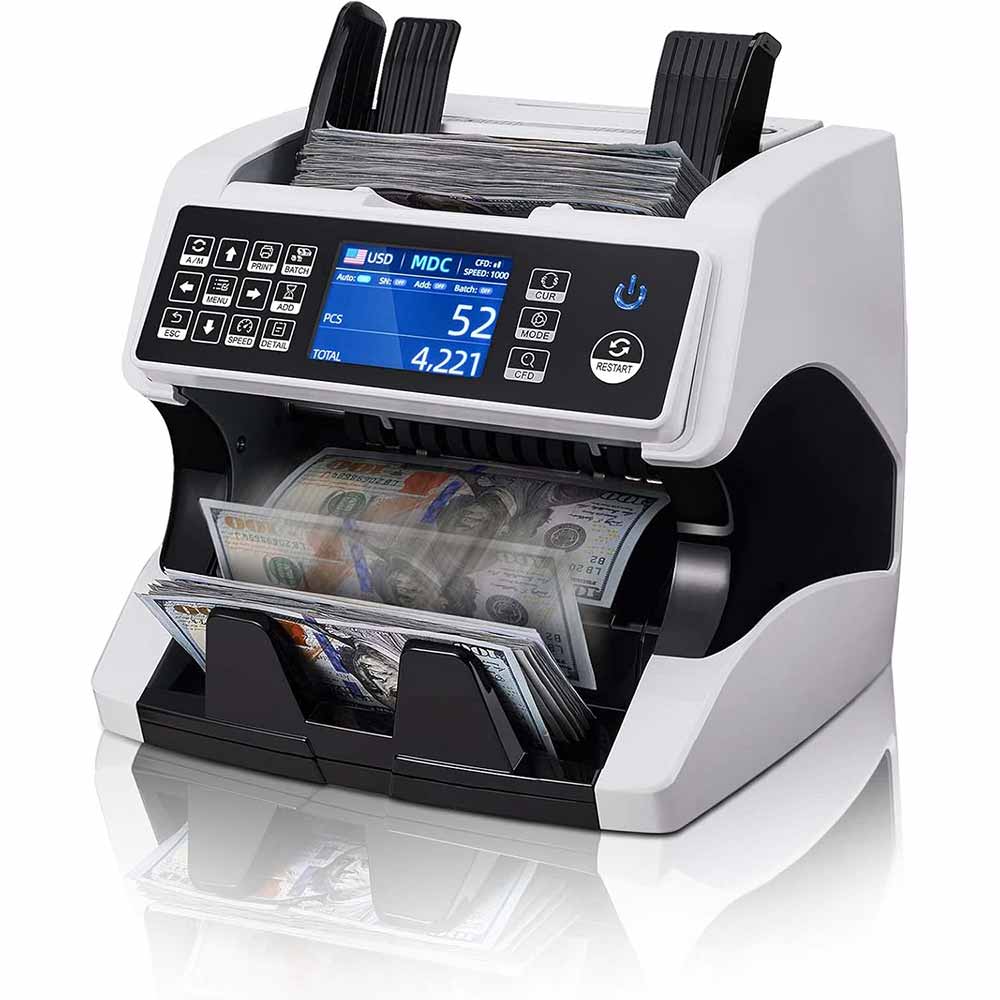

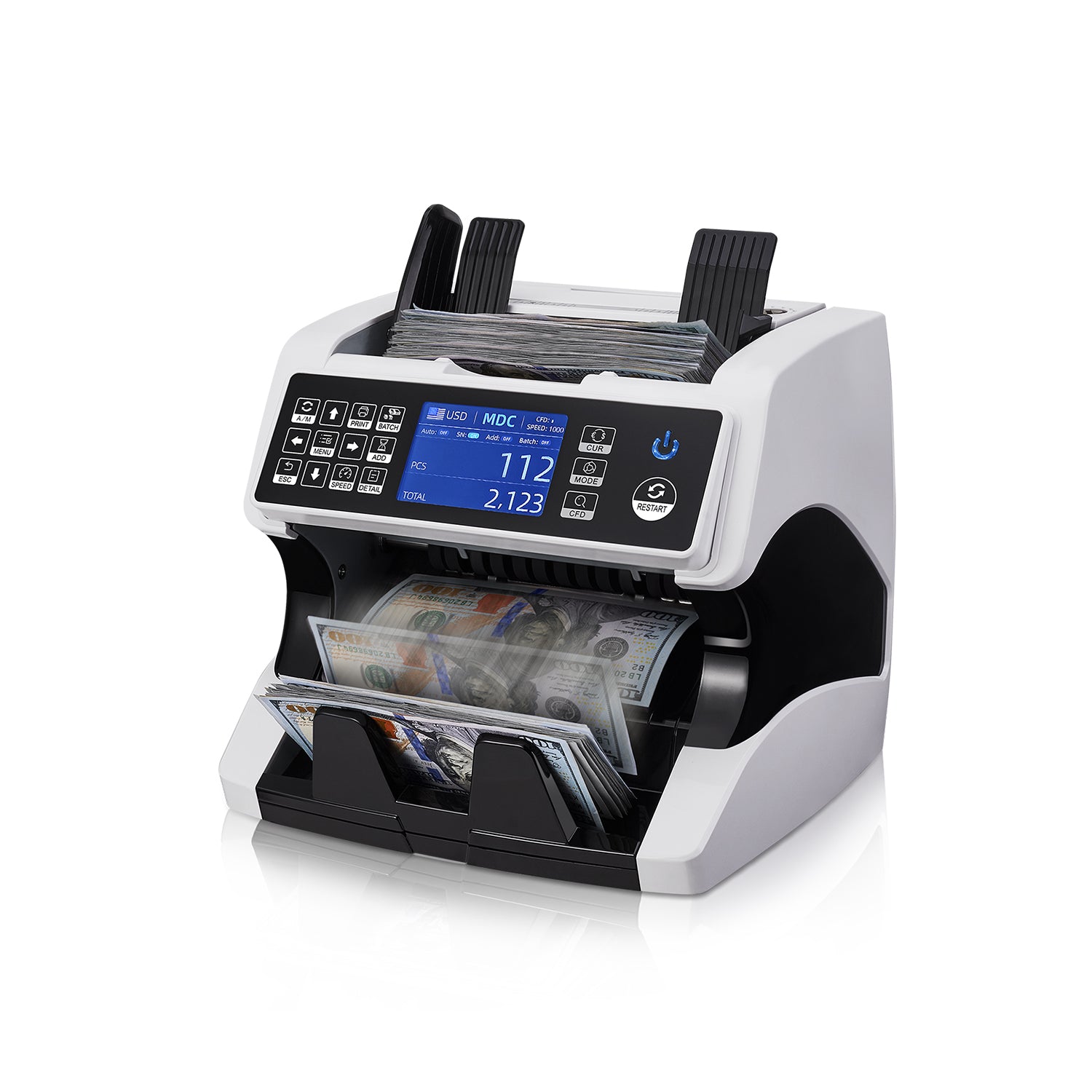

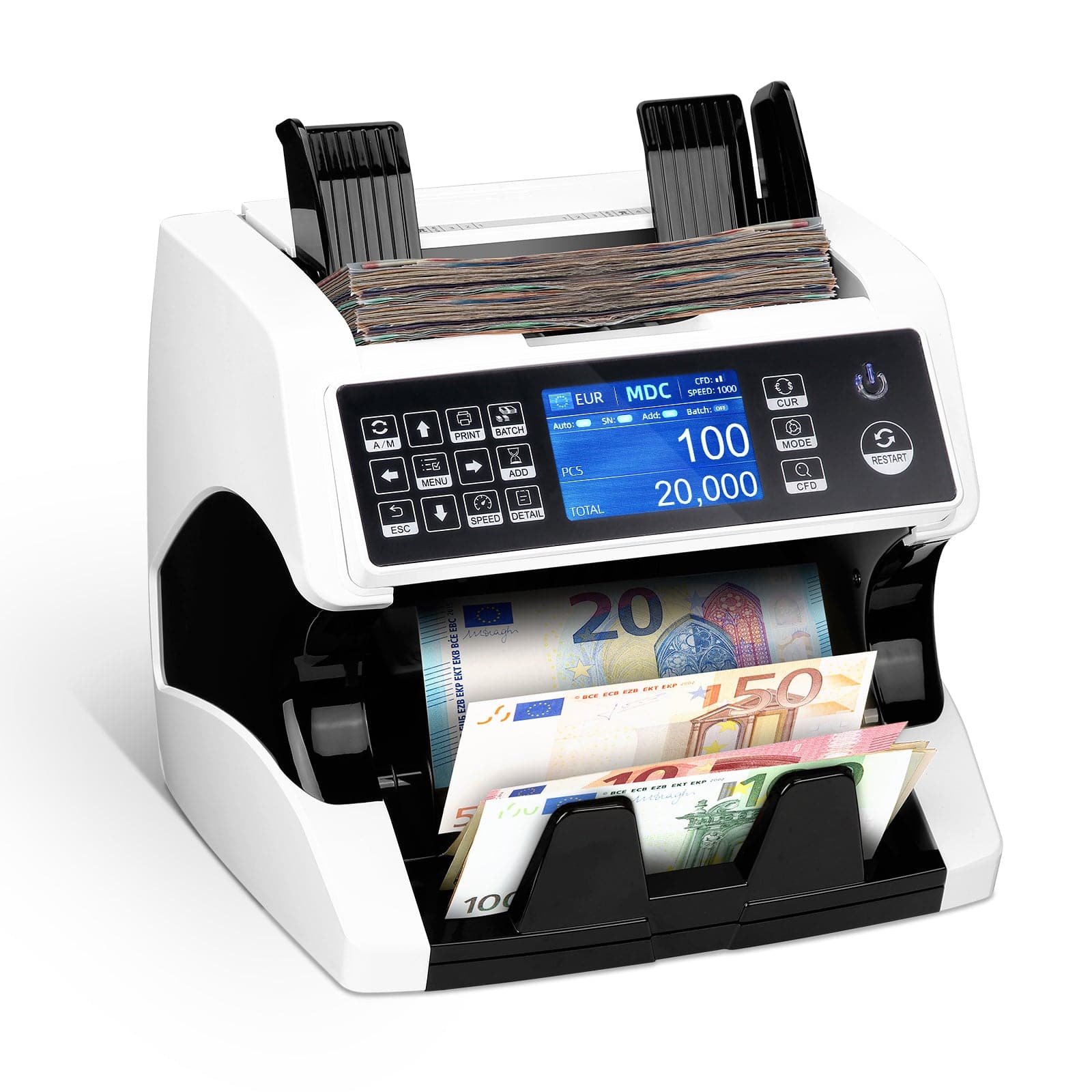

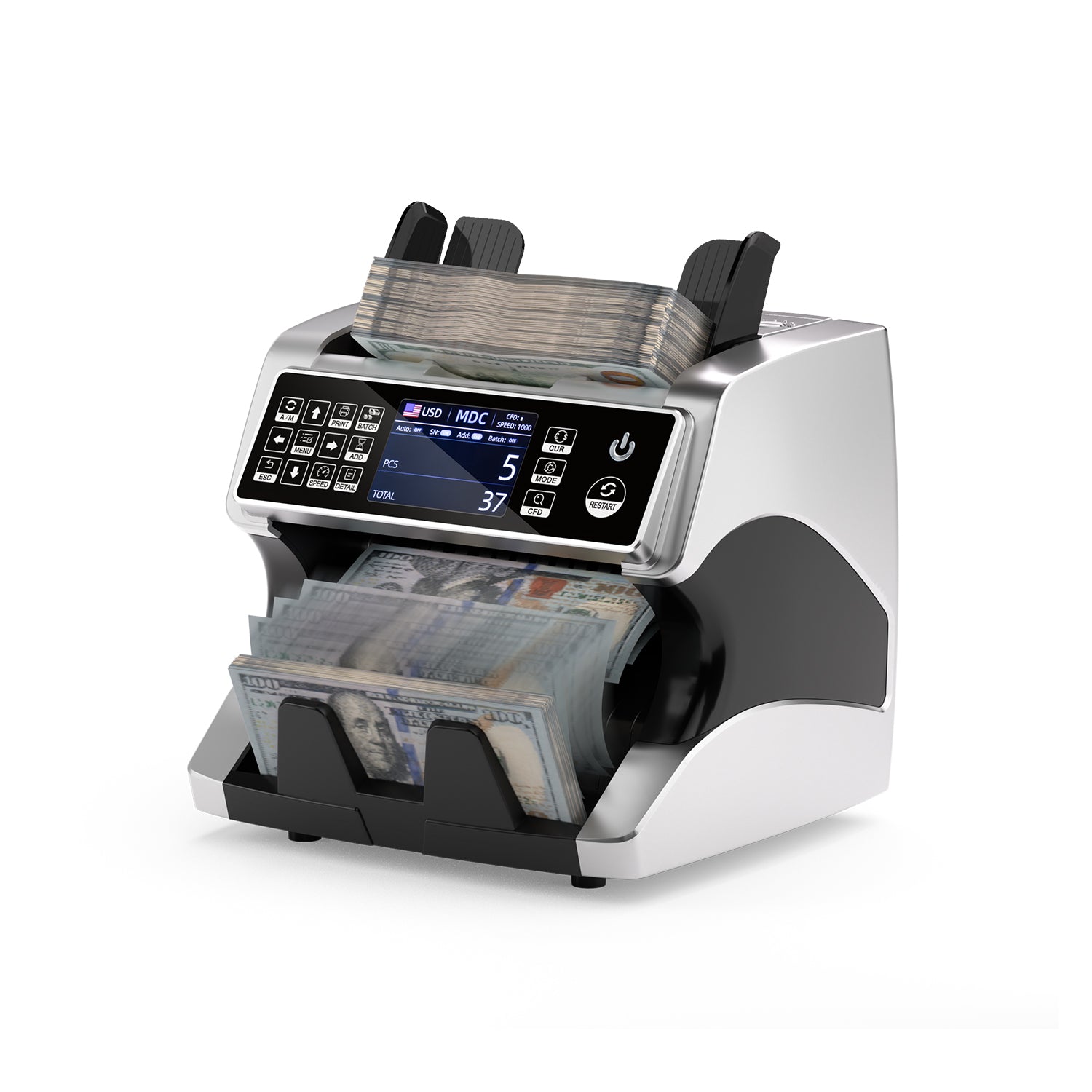

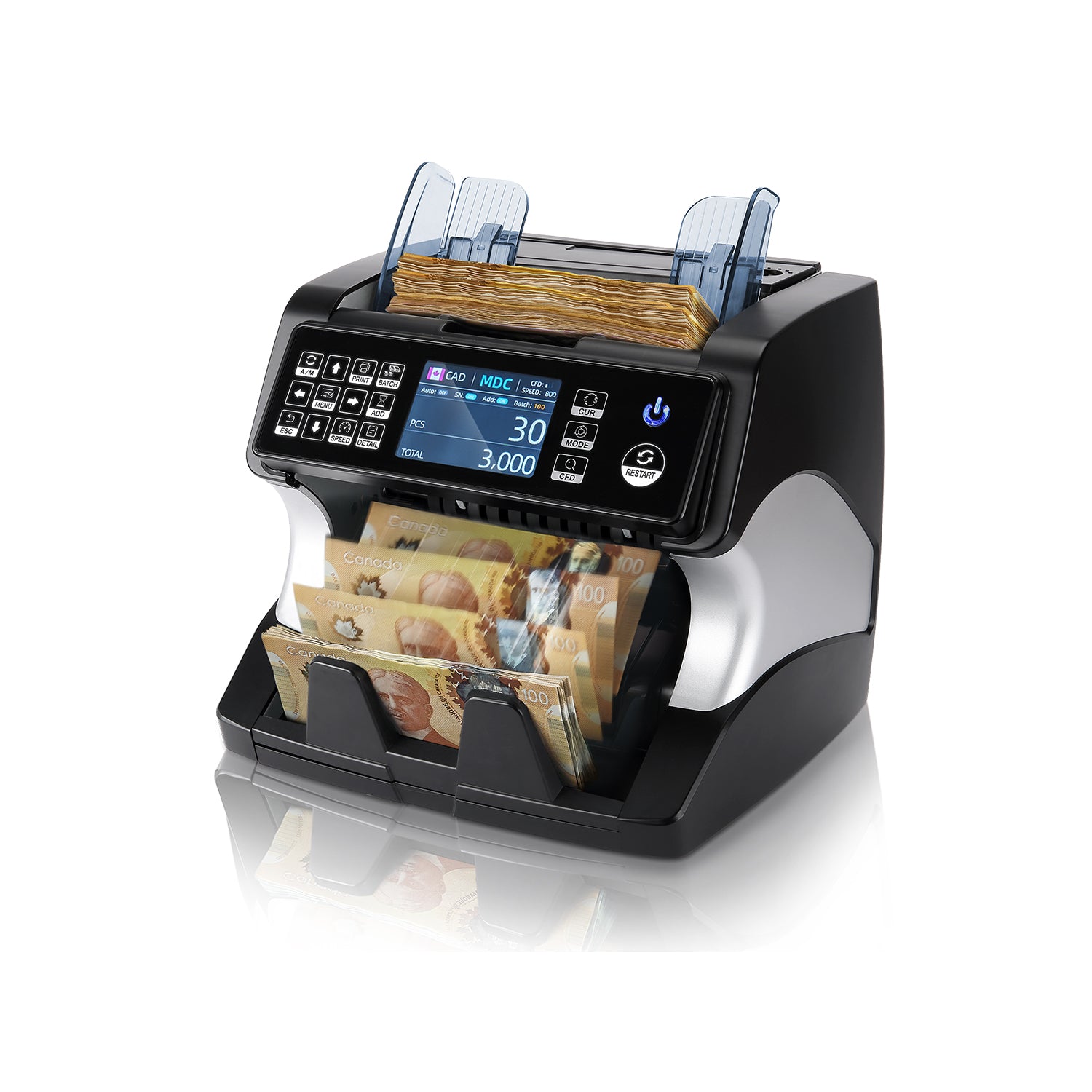

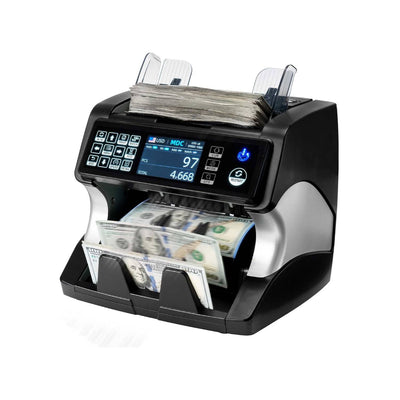

MUNBYN IMC01 Bank Grade Money Counter Machine Mixed Denomination

The default currencies in the IMC01 are showed at the following:
US/CA version: USD, EUR, CAD, MXN, GBP,
EU version: EUR, USD, GBP, CHF, PLN, SEK, NOK, DKK,
UK version: EUR, USD, GBP, SCO, CHF, PLN, SEK, NOK, DKK.
The IMC01 software can support COP (Colombian Pesos), LBP (Lebanese Pesos), DOP (Dominican Republic Pesos) and up to 100 currencies. Please contact our support team to guide you to upgrade your new currencies configuration.

Warm tips: it is free to update your required currencies.

This machine can recognize the serial numbers of all default currencies in the IMC01. Please note it doesn't detect fake serial numbers.

Yes, there is the ITPP106 printer compatible with the IMC01 banknote counter. Here is the
It can print the record of the counted banknotes, including counted number, total value counted and breakdown of count by denomination, and serial number.

Yes, the quantity and value of the counted notes will be displayed on the external screen when counting one currency only. If you use the multi-currency one-time counting mode, only the number of the counted notes will be displayed on the external screen.

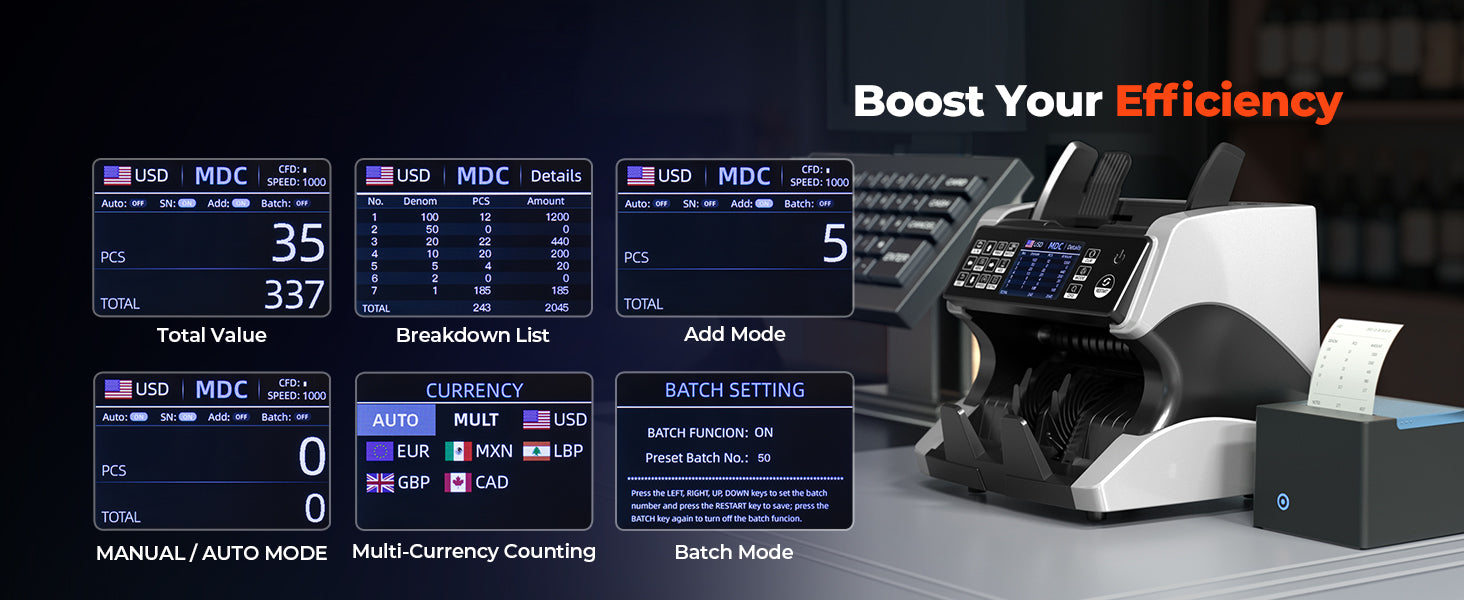

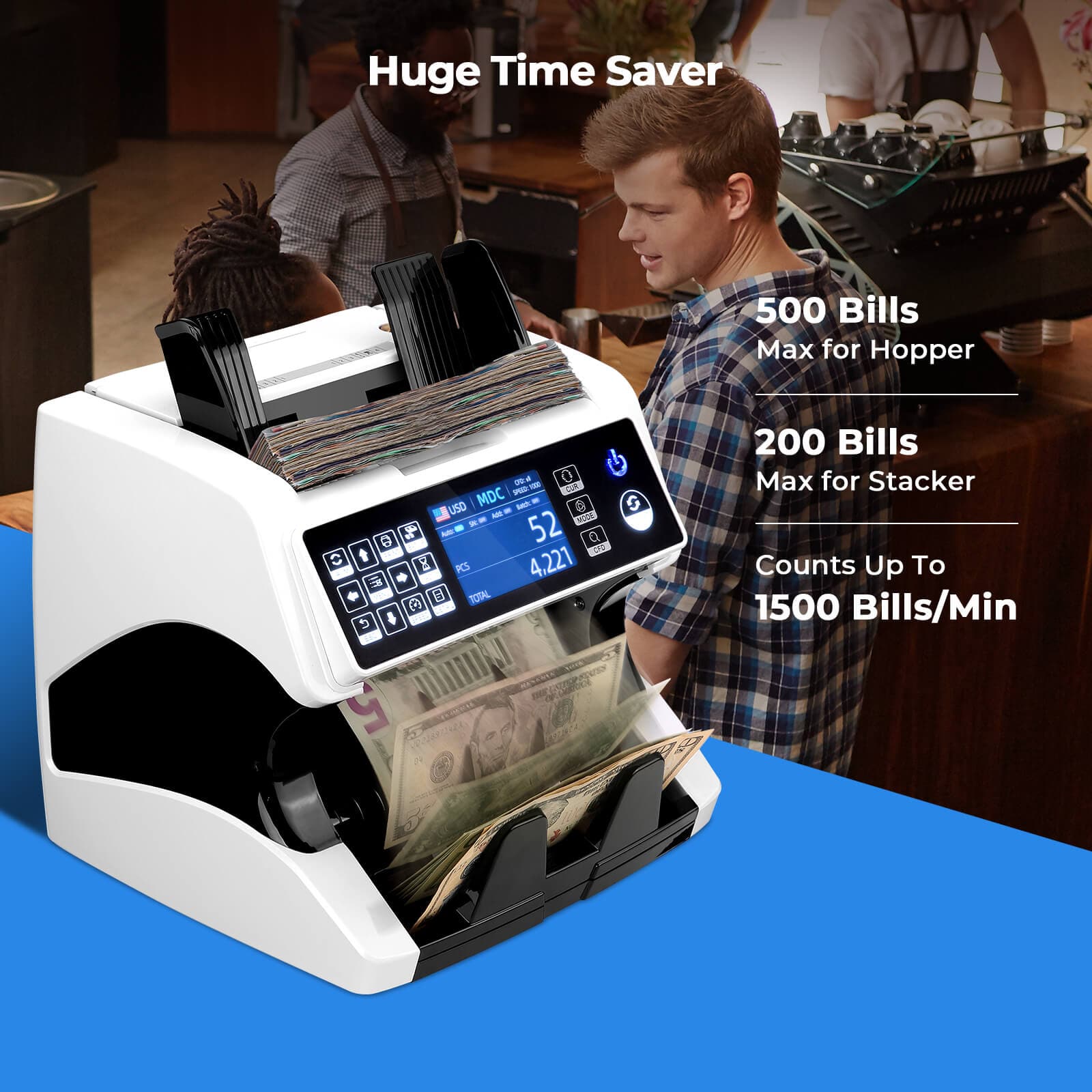

Yes, the IMC01 has the batch function for certain notes bundling. You can set the batch number from 0 to 998. For example, if you set the batch number to 50, when you put 200 notes in the hopper, the IMC01 will stop once the counted quantity reaches 50 for you to bundle. We recommend the number is less or equal than 200 because of the stacker capacity.

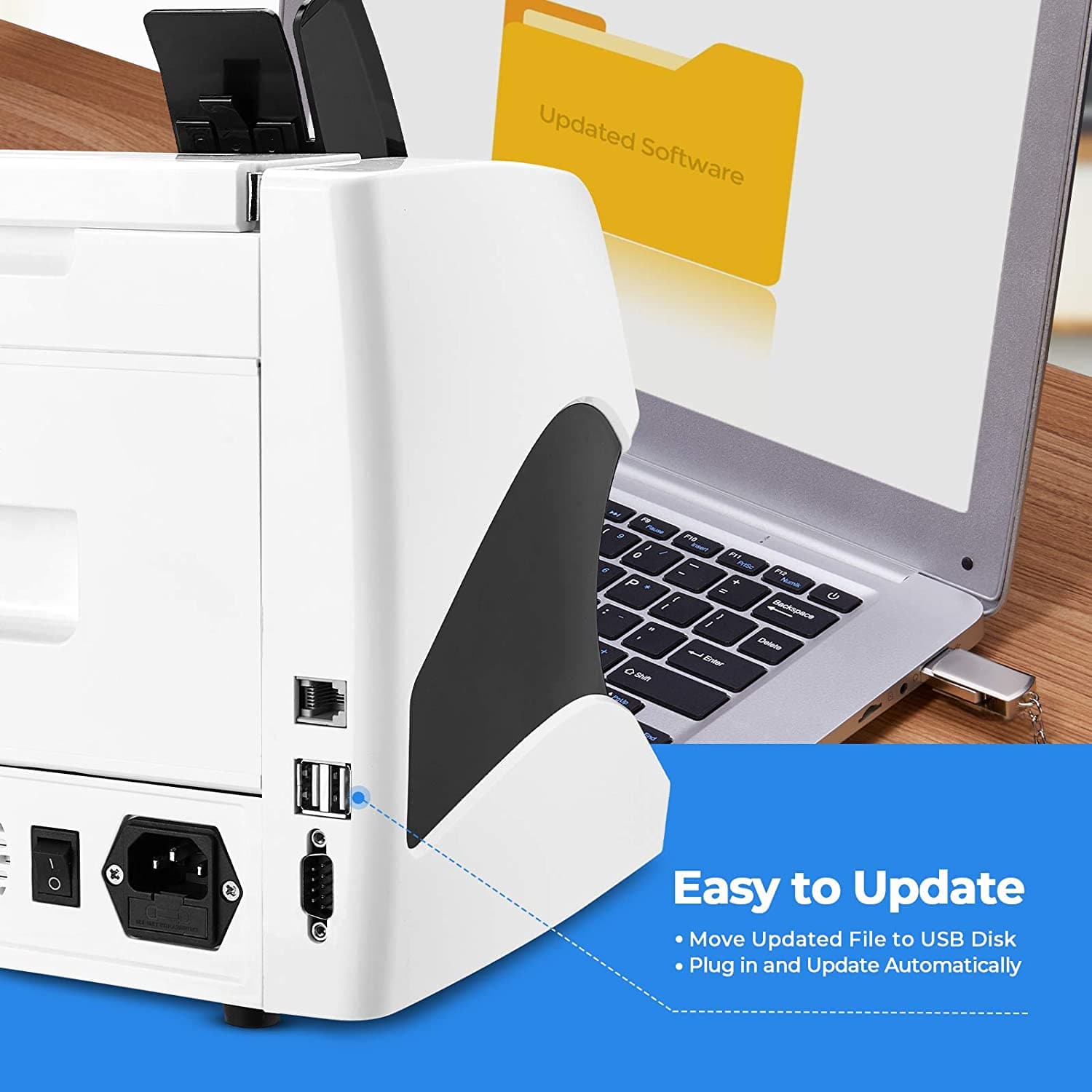

During the banknote counting, the counted log will be exported to the USB port with the USB flash drive plugged in. And then you can copy the OCR_SN txt file from the USB flash drive to the computer.

Click here to view the video demo.

Click here to view the video demo.

Click here to view the video demo.

Click here to view the video demo.

Click here to view the video demo.

Click here to view the video demo.

Click here to view the video demo.

Click here to view the video demo.

Click here to view the video demo.

Click here to view the video demo.

Click here to view the video demo.

Click here to view the video demo.

Click here to view the video demo.

Click here to view the video demo.

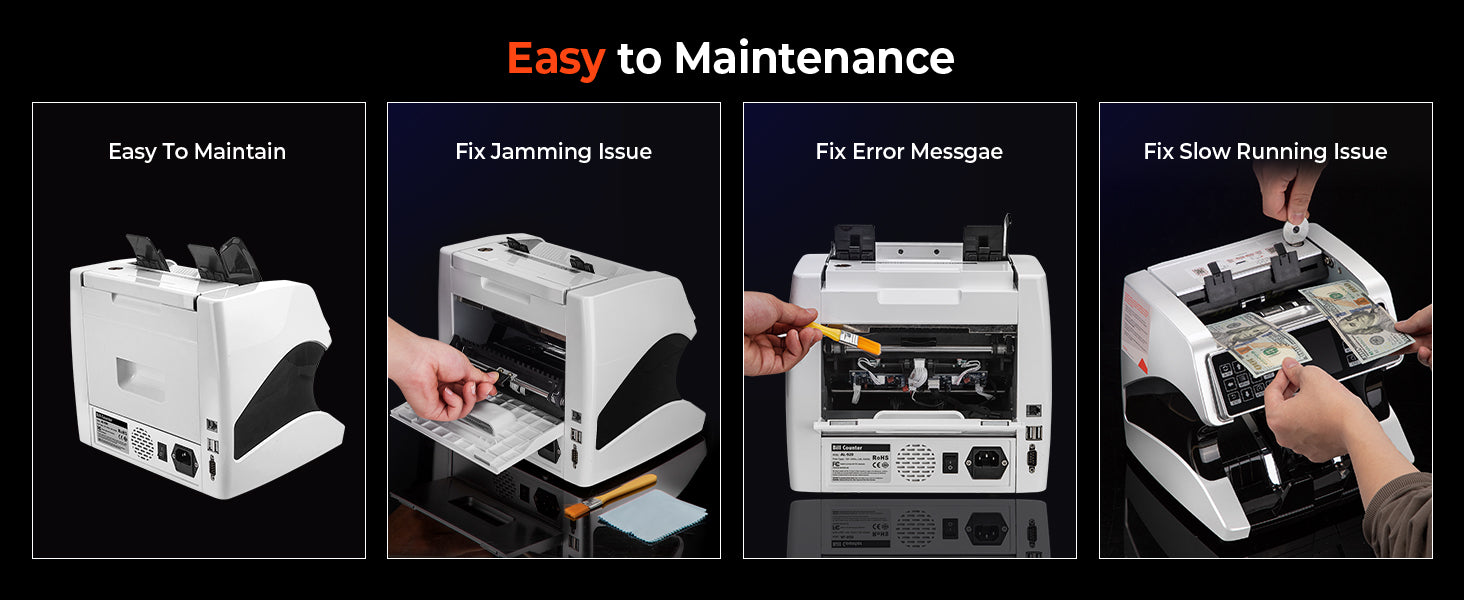

Please follow the following steps to clean the machine. Before cleaning the machine, please turn off the machine first.
1) Clean the Hopper
There are 3 parts need to be clean in the hopper: hopper sensor, banknote processing wheel and the banknote entrance, please use the nylon brush to clean them.
2) Clean the Stacker Sensors
As shown in the following figure, clean the stacker sensors with nylon brush.
3) Clean the Internal Sensors

Figure 2-1 Direction of Back Cover Opening

a)Pull the handle of external and internal back covers with the direction shown in Figure 2-5 to open the back covers.
b)Pull the handle of internal back covering the direction shown in Figure 2-5 to open it.
c)Clean the lower CIS and Lower UV sensors with cleaning cloth or nylon brush respectively.

Figure 2-2 Lower Sensors

d) Clean the upper CIS with cleaning cloth.

Figure 2-3 Upper CIS Sensor

Note: For the CIS sensors, it is recommended to used cleaning cloth to clean them.
For more detail instructions, please read the section 2 of the IMC01 maintenance manual to clean the machine.

If the bills are stuck inside the machine, please turn off the machine and rotate the banknote processing wheel by the direction of the following figure to take the jammed notes.

Figure 2-4 The Direction of Wheel Rotation to Take the Jammed Bill

You can fix the jamming issue easily by the following 3 steps.

1. Check If any foreign matter inside of machine, and take the foreign matter out of the machine.
2. Clean the machine according to the methods of FAQ 2.2.
3. After you have the above 2 steps, just the feeding gap according the methods of FAQ 2.6.

If the wheels in the hopper is always spinning after the machine power on, and then stop with the “hopper sensor error” or “main motor error” indicated on the screen, that means the hopper sensor is too sensitive.

Please use the marker pen to paint a little on the hopper sensor as shown in the above figure.

Figure 2-6 The Adjustable Screw

The screw is used to control the width of the feeding gap. The width will become smaller by rotating the screw toward the smallest dot, otherwise, it will become bigger.

Figure 2-7 Rotate the Screw to Increase the Feeding Gap

Figure 2-8 Rotate the Screw to Decrease the Feeding Gap

Please fine tune the feeding gap by the following steps:
1) Stop the auto counting first.
Insert one banknote to the gap between the rollers to check if the banknote can be inserted smoothly, as shown in the following.

Figure 2-9 The Banknote Feeding Gap

Figure 2-10 One banknote to Check the Gap between the Rollers

3) If the banknote is hard to inserted, that means the feeding gap is too small, please rotate the screw clockwise until the banknote can be inserted smoothly. If the feeding gap is so large that two or more banknotes can be inserted to the feeding gap, please rotate the screw counterclockwise until the gap can just allow one banknote inserted.
4) Use the banknote to check the other sides of the gap between rollers, to make sure the banknote can be inserted into both sides of the feeding gap smoothly.

Figure 211 One Coin to Rotate the Screw

Tips: you can just use one coin to rotate the screw.

Having the correct feeding gap adjusted will ensure a smooth counting as well as a trouble-free operation. Trial and error attempts are recommended before you make the final adjustment and start the count.

You may also perform this adjustment when the banknotes are not fed smoothly through the machine or several error messages are occurring too often like Bill Double Error, Chain Notes Error or Half Notes Error.
Other reasons that might require to readjust the feeding gap are:
- The counting of new or mint condition notes
- The counting of poor or bad fitness condition notes
- Polymer notes and Paper-made notes counted together

CIS calibration is needed when there are many errors during the banknote counting process.
Please enter the menu interface. And go to the service menu with the password “9999”, as shown in the following figures.

Figure 2-12 Main Menu

Figure 2-13 Service Menu

Click the “CIS Calibration” option, the screen will be shown in the following figure.

Figure 2-14 CIS Calibration Interface

3) Open the back cover to clean the CIS sensors with cleaning cloth.

Figure 2-15 Open the Back Covers

Figure 2-16 Clean the Lower CIS

Figure 2-17 Clean the Upper CIS

4) Put the CIS calibration paper (white paper) inside, and close the back covers.

Figure 2-18 Place the CIS Calibration Paper

5) Start CIS calibration by pressing the “RESTART” button.

Figure 2-19 Start the CIS Calibration

6) After finish, just take the calibration paper out and close the covers, and then turn off the machine.
7) Turn on the machine to finish the CIS calibration.

After fine tuning the screw and CIS calibration, if there are still some errors or the counting is still not correct, returning to the factory default setting mode is required.
1) Enter the menu interface, and go to the service menu with the password “9999”, as shown in the following figures.

2) As shown in above figure, choose “⑩. Back to Default Setting” and enter the menu key. It will enter to the following display on the screen.

3) Press the RESTART key, the IMC01 will reset all the changed settings before.

4) Go back the main screen, and the use your finger to touch the hopper sensor. The processing wheels and rollers in the IMC01 will run for a while.

For more details, please check: https://support.munbyn.com/hc/en-us/articles/4413870754963-How-to-restore-the-unit-back-to-factory-settings

1) There may be some dust on the surface or sensors blocked by notes, please open the back cover to check if there is any foreign matter inside, and then clean the sensors with brush or soft cloth.
2) If there is still some error happen, please calibrate the CIS with the calibration white paper.
3) If you meet some chain note (the feeding gap is too large) or half note error (the feeding gap is too small), please readjust the feeding gap by rotating the screw according to section 2.6.
4) If you meet some UV, MT, MG or IR errors, please check the bill first, or decrease the CFD level and try again.
5) If it still doesn’t work even you try the above steps, go to the “Service Menu->Back to Default Setting” to reset your changed settings.
